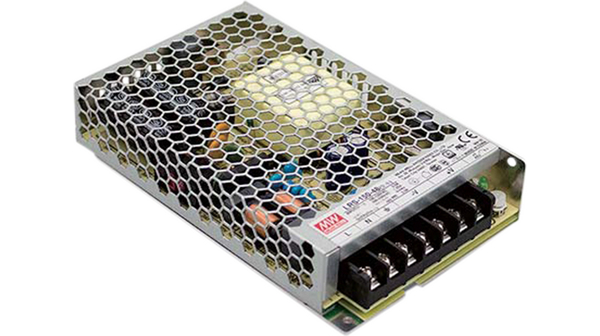

SPS Case 156W 24V/6,5A

 Features• Enclosed case, screw terminals• LRS-150F: Universal input• LRS-150: 230V AC/115V AV by switch• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage/ over temperature• Low profile• EN60335-1 (PD3), EN61558-1, -2, -16Technical Specifications  Input Voltage                                LRS-150:85...132V AC/170...264V AC (47...63Hz)240...370V DCInput Inrush Current, Max.:60ALeakage Current, Max.:0,75mAOutput Voltage Adjustment:±10%Over Load Protection:110...140%Withstand VoltageI/P-O/P:3750V ACI/P-FG:2000V ACO/P-FG:1250V ACOperating Temperature:-30...+70°COperating Altitude, Max.:5000mWeight:480gI/P = Input, O/P = Output, FG = Frame Ground       Part Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]       LRS-150-12120...12,5150115087,5LRS-150-15150...10150115088,5LRS-150-24240...6,5156120089LRS-150-36360...4,3154,8120089LRS-150-48480...3,3158,4120090UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyNoteThese power supplies are considered as a component that has to be installed in a final equipment.Labelling   Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer
