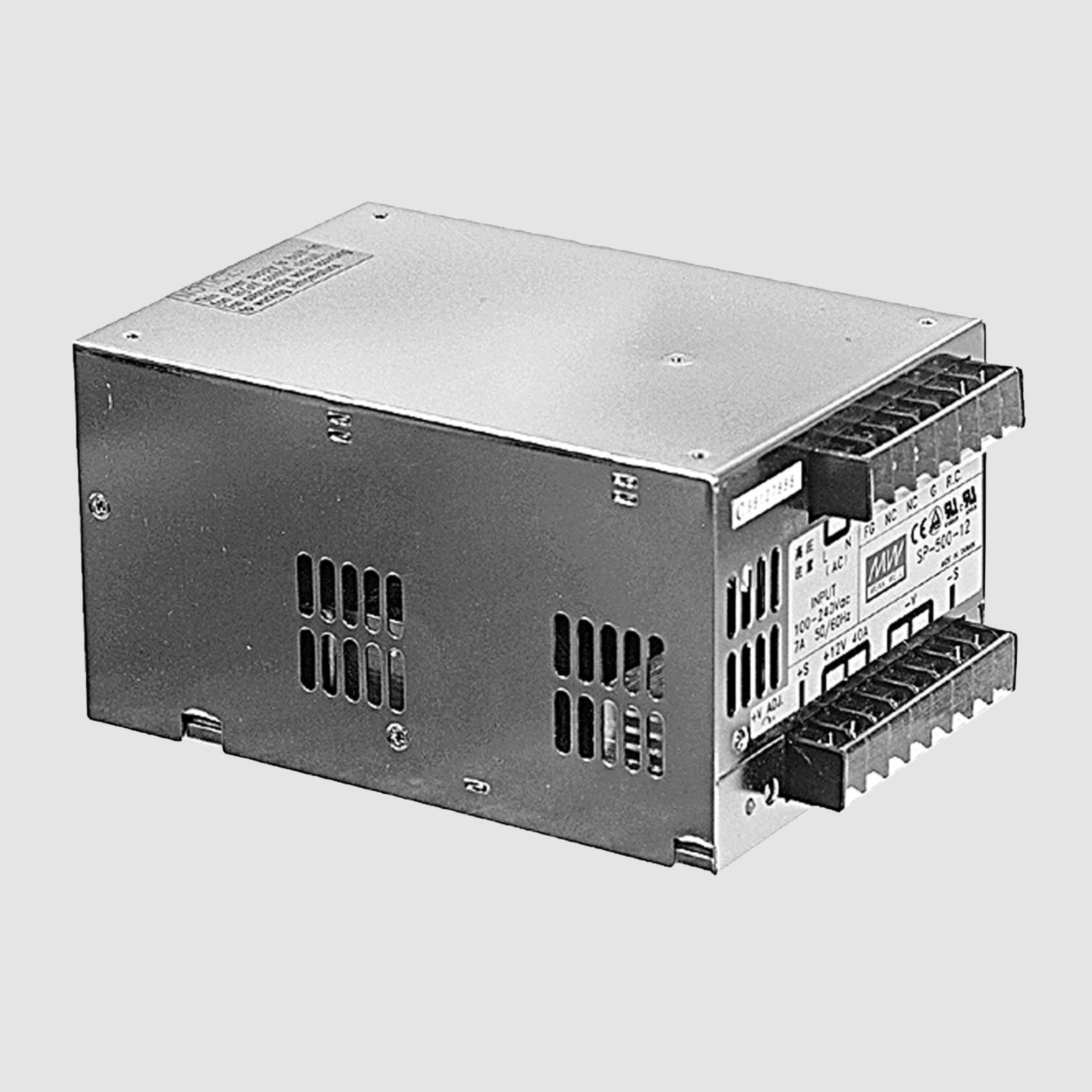

SPS Case 480W PFC 24V/20A

Gruppe: L6381MEANWELL Switching Power SuppliesSeries: SP-500Case, Single OutputOutput: 480 to 486WFeatures• Enclosed case, built-in fan, screw terminals• Universal input• Overload protection, current limiting, auto recovery• Protections: short circuit/over load/over voltage• Built-in active PFC function• Built-in remote On/Off control• Built-in remote sense functionTechnical SpecificationsInput Voltage:88...264V AC (47...63Hz)124...370V DCInput Inrush Current, Max.:36ALeakage Current, Max.:3,5mAOutput Voltage Adjustment:±10%Over Load Protection:105...135%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-10...+50°CWeight:1900gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]SP-500-12120...40480124084SP-500-13.513,50...36486124084SP-500-15150...32480124083SP-500-24240...20480124085,5SP-500-27270...18486120086,5SP-500-48480...10480130087UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyNoteYou will find installation material in product group L6911.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
