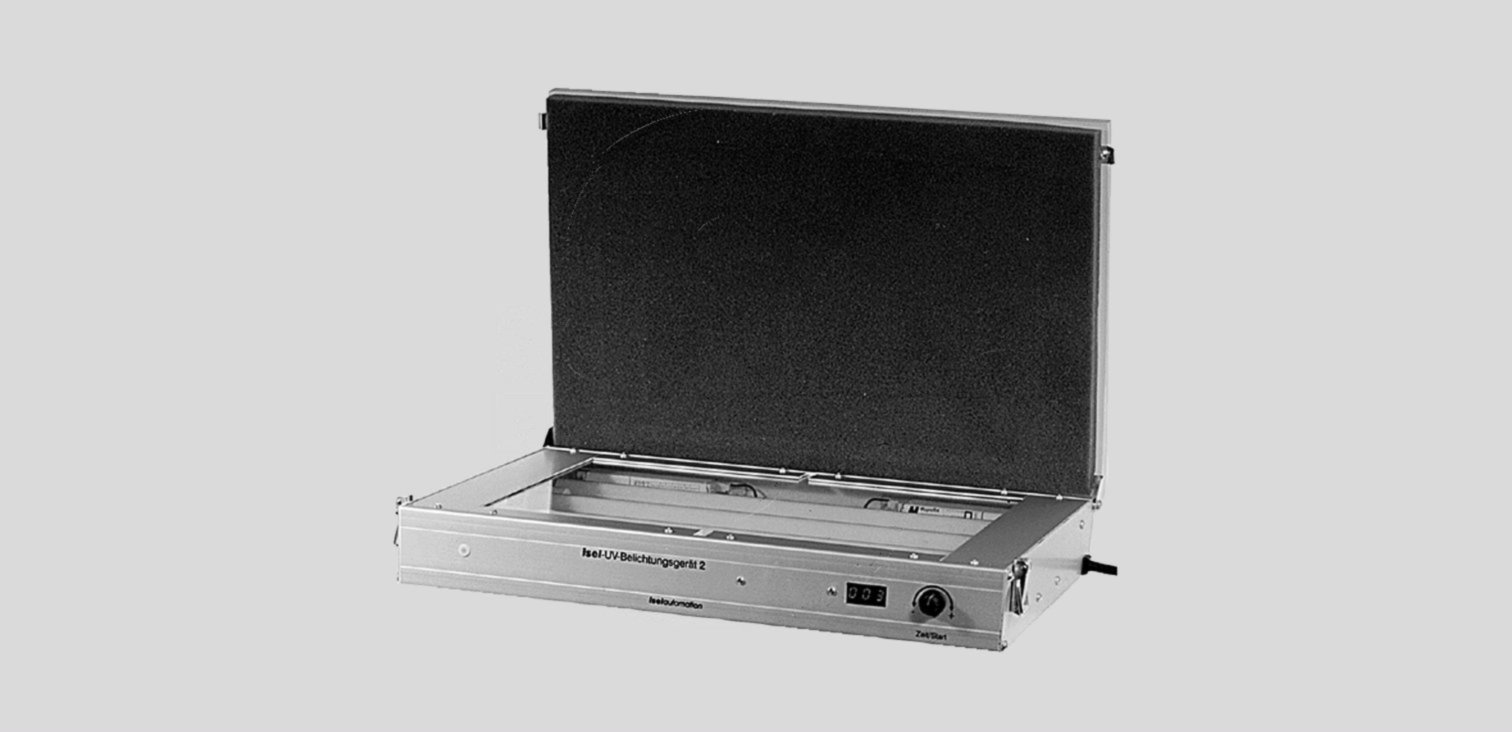

UV Exposure Equipment 4x15W

Gruppe: T3131GIE-TEC UV Exposure EquipmentSeries: BELBEL14007, BEL14017UV Exposure EquipmentApplicationAs exposure device for photo-coated films and plates, for the production of printed circuits.Features• Anodized aluminium housing, ground crystal screen, UV light tubes• Uniform pressure due to foam-lined lid• Optimal light distribution over exposure area and good repeatability• Electronic timer with digital display, adjustable time of 1 second up to 100 minutes• Four guide and adjustment strips above the glass screen enable single and double-sided films to be placed accurately and photo-coated circuit boards to be adjustedTechnical SpecificationsPart Nr.LxWxHExposureNumber ofPower  AreaTubesConsumption [mm][mm][Pieces x W][W]BEL14007317x225x90160x2504x832BEL14017473x310x93240x3654x1560NoteYou will find aids for producting PCBs in our catalogue at the following product groups:• Etchant fluids: R3515 und R3517• Developer for film coated contact plates: R3518• PCB protection lacquer: R2267• Positive photoresist lacquer: R2266• You will find photoresist boards and epoxy boards in our blue "Passive and Electromechanical Components" starting at product group F9512.BEL41007, BEL41017UV Fluorescent LampsTechnical SpecificationsPart Nr.For UVPowerLength1) Exposure Equipment    [V/W][mm]BEL41007BEL14007230/8300BEL41017BEL14017230/154501) Length Including Connecting Pin Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.gie-tec.de
