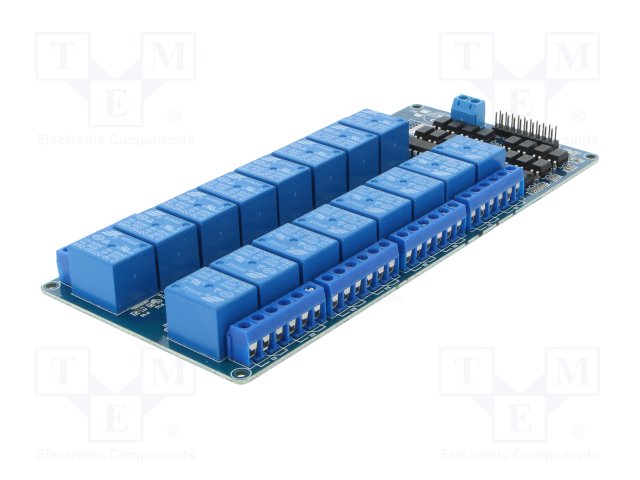

Module: relay; Channels: 16; 5VDC; max.250VAC; 10A

· 5V 16-Channel Relay interface board, and each one needs 15-25mA Driver Current.· Equiped with high-current relay, AC250V 10A;DC30V 10A.· Standard interface that can be controlled directly by microcontroller (for Arduino , 8051, AVR, PIC, PLC,DSP, ARM, ARM, MSP430, TTL logic).· Indication LED\\\'s for Relay output status.· Size:18cm x 9cm x 1.8cm ManufacturerOKYSTAR Type of modulerelay InformationProduct is not a working device, but only component Number of channels16 Supply voltage5V DC Switched voltagemax. 30V DC, max. 250V AC Contact current max.10A Additional informationGross weight: 201.2 gManufacturer part number: OKY3016
