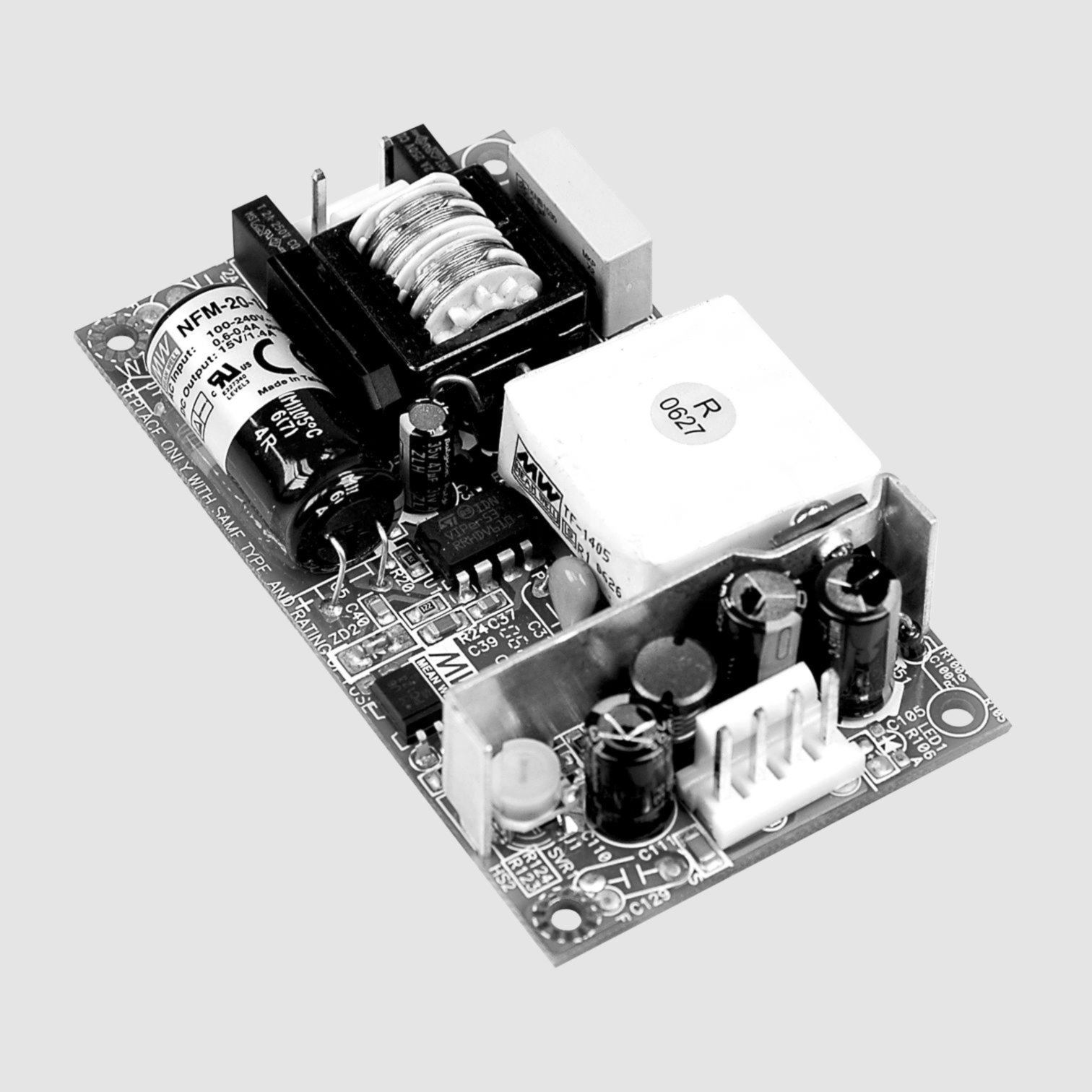

SPS Open Frame 22W 5V/4,4A

Gruppe: L7127MEANWELL Switching Power SuppliesSeries: NFM-20Open Frame, Single OutputOutput: 14 to 22WFeatures• Open frame• Contact pin for nylon-crimp terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• EN60601-1 compliant• Low no load power consumptionTechnical SpecificationsInput Voltage:85...264V AC (47...440Hz)120...370V DCInput Inrush Current, Max.:65ALeakage Current, Max.:0,2mAOutput Voltage Adjustment:±10%No Load Power Consumption, Max.:0,75WOver Load Protection:>105%Withstand VoltageI/P-O/P:4000V ACI/P-FG:1500V ACO/P-FG:1500V ACOperating Temperature:-20...+60°CWeight:90gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]NFM-20-3.33,30...4,514,8528071NFM-20-550...4,42228075NFM-20-12120...1,821,6115081NFM-20-15150...1,421115083NFM-20-24240...0,9222,08124084UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyNoteYou will find suitable crimp housings in product group L7611.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
