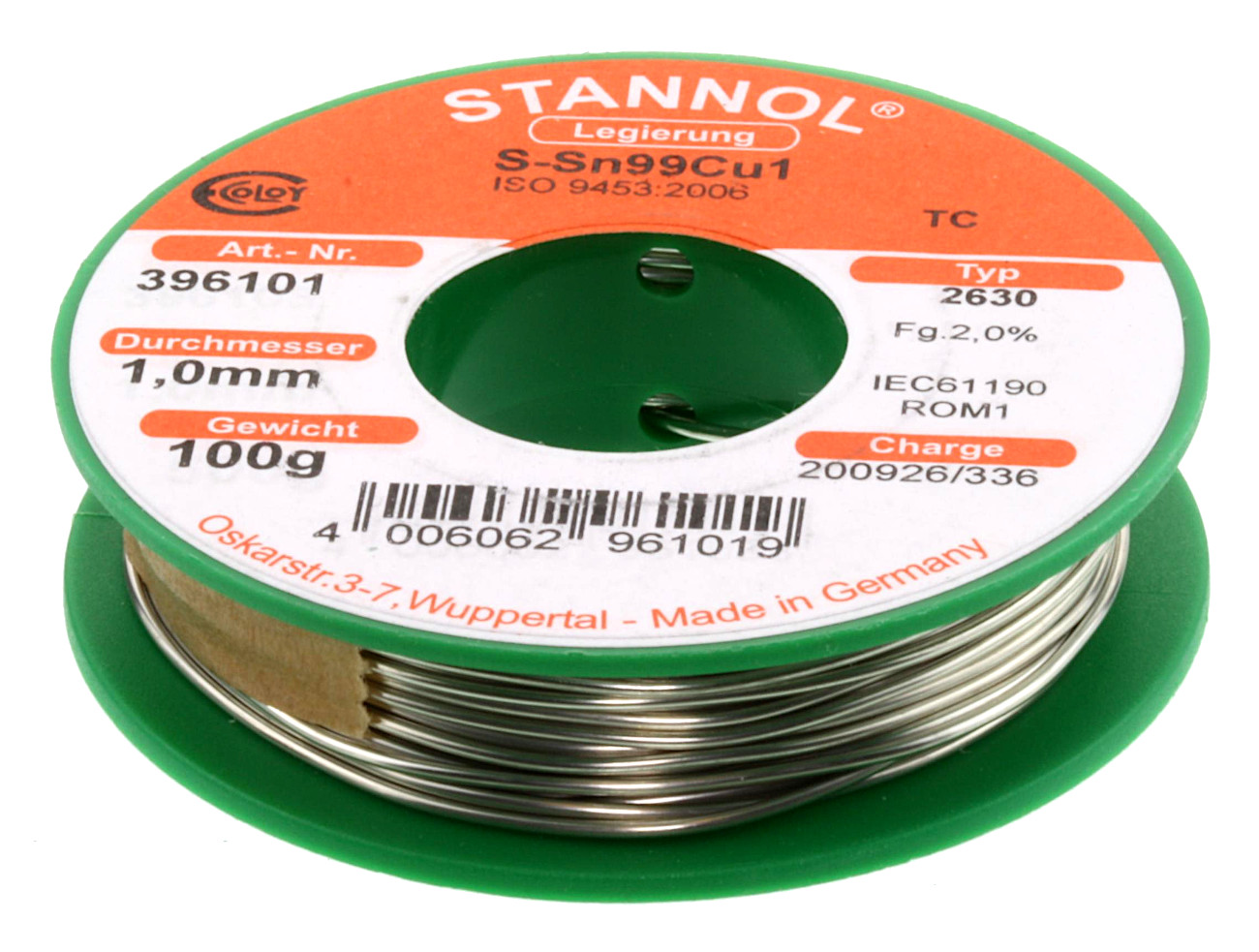

2630 TC Ecoloy 2,0% 1,0mm 100g/396101

Gruppe: R5116STANNOL Lead-free Soldering Wires Ecoloy Halide-activated Flux 2,0% Diameter: 1,0mm Series: 2630 TC396101Features• Halide-activated natural resin fluxes• High activity, good spread and high residue reliability• High spread speed• Soldering points are glossy with few bright flux residues• Flux residues - can be left on the PCB• For soldering transformers and soldering copper cables with large cross sections• For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component• Hand and robot solderingTechnical Specifications  Melting Point:217°CFlux Type (IEC 61190-1-3 ROM1):1.1.2.BFlux Content:2,0%Corrosive Effects (DIN 8516):NoneAlloy (ISO 9453:2006):Sn99Cu1/TCFlux Core:1 CoreNote• Soldering temperature and soldering time must accordingly be adjusted for lead-free solders.Terms of DeliveryMinimum order quantity: 1 PKU = 1 piece
