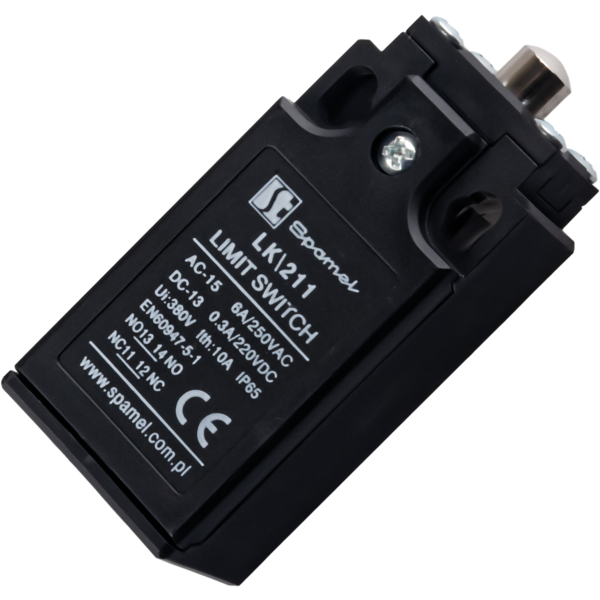

Endestopkontakt, med Tryk kontakt

Economical & plastic typeStainless steel roller, punch and springSwing amplitude, extra large±95°Standard size configuration M20x1.5 for conduit connectorAmbient temperature-10 ... +70°C (with no icing)Degree of protectionIP65Insulation resistance100mΩ min. (below 500VDC)Contact resistance25mΩ max. (initial value)Operation speed0.5mm-50cm/sOperating frequencyMechanical: 120 operations/minute Electical: 30 operations/minuteShockMechanical durable: 1, 000m/Sec2 (about 100G'S)Malfunction: 300m/Sec2 (about 30G'S)Vibration10-55Hz,1.5mm double amplitudeHumidity<95% RHLiveMechanical: 10,000,000 operations aboveElectrical: 500,000 operations aboveDielectric strength1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity1500VAC, 50/60 Hz for 1 minute between live and non-energized metal parts1500VAC, 50/60 Hz for 1 minute between each terminal and groundReleasing Force200 gPre-travel1.8 mmTripping position2.0 mmOver travel4.0 mmMovement differential1.2 mmTotal travel5.8 mm
