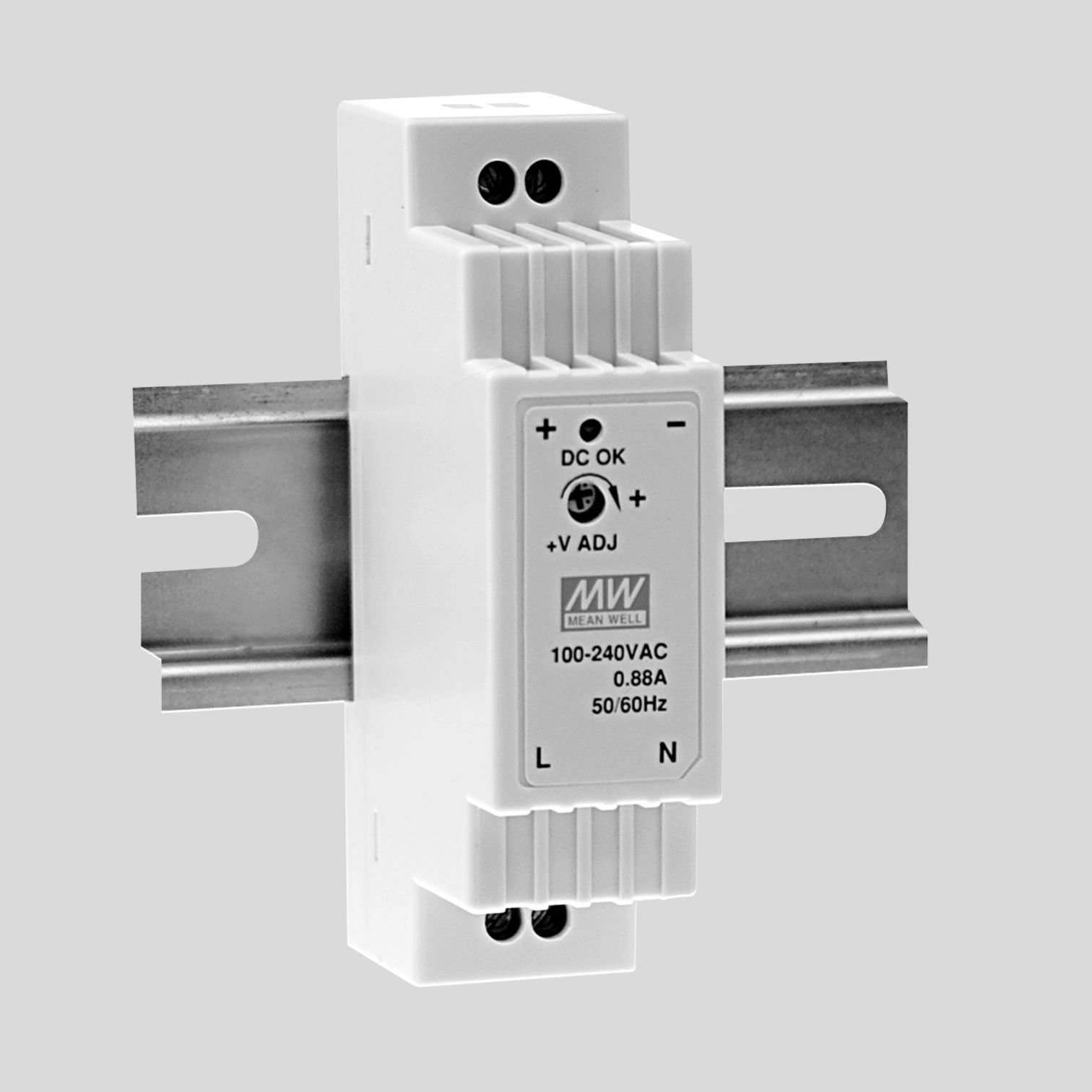

SPS DIN-Rail 15W 15V/1A

GROUP:L5120Gruppe: L5120MEANWELL Switching Power SuppliesSeries: DR-15DIN-Rail Assembly, Single OutputOutput: 12 to 15WFeatures• Direct assembly on DIN Rail• Enclosed case, Touch-guard screw terminals• Universal input• Overload protection, current limiting, auto recovery• Protections: short circuit/over load/over voltage• Low no load power consumption• Power-on LED display• Insulation Class IITechnical SpecificationsInput Voltage:85...264V AC (47...63Hz)120...370V DCInput Inrush Current, Max.:65AOutput Voltage Adjustment:±10%Over Load Protection:105...160%Withstand Voltage, I/P-O/P:3000V ACOperating Temperature:-20...+60°CWeight:100gI/P = Input, O/P = OutputPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]DR-15-550...2,41228077DR-15-12120...1,2515112084DR-15-15150...115112083,5DR-15-24240...0,6315,2115085UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyLabelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
