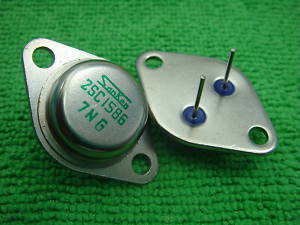

NPN.250V.15A.150W.TO-3

Type Designator: 2SC1586Material of transistor: SiPolarity: NPNMaximum collector power dissipation (Pc), W: 150Maximum collector-base voltage |Ucb|, V: 250Maximum collector-emitter voltage |Uce|, V: 200Maximum emitter-base voltage |Ueb|, V: 6Maximum collector current |Ic max|, A: 15Maximum junction temperature (Tj), °C: 175Transition frequency (ft), MHz: 5Collector capacitance (Cc), pF:Forward current transfer ratio (hFE), min: 30Noise Figure, dB: -Package of 2SC1586 transistor: TO3
