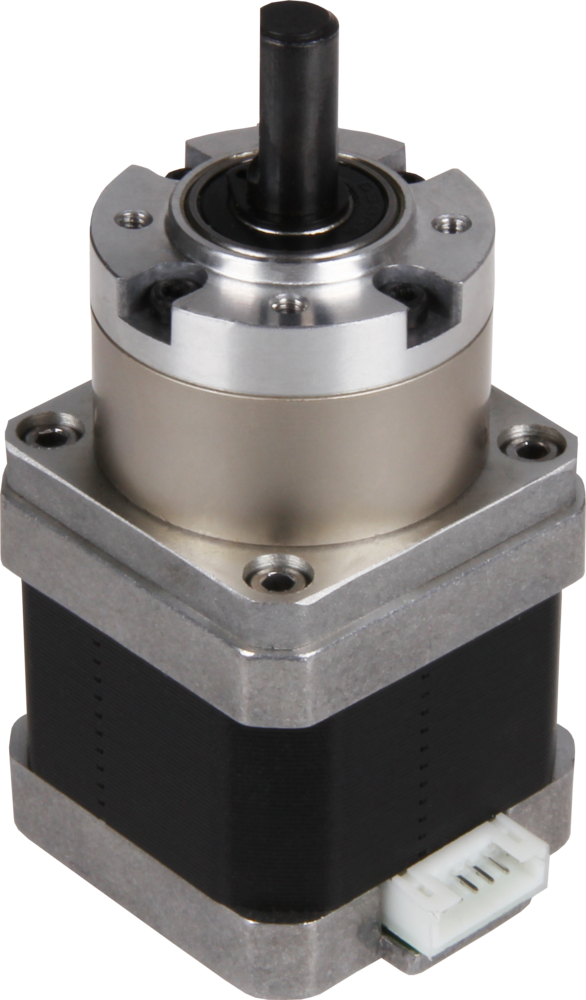

NEMA 17 Stepmotorer med 5:1 gear

This compact stepper motor with a 5:1 transmissioned gearing is suitable for applications in which you require a precisely and powerfully working stepper motor.SPECIFICATION42SHD0229-5GSHAFT DIMENSIONSØ 8 x 15 mm (single shaft)CONNECTION6-pole socket (JST), 4 Pins usedSTEPS PER REVOLUTION200 (motor shaft), 1000 (gear shaft)GEAR RATIO5 : 1HOLDING TORQUE WITH GEAR BOX1.68 NmRATED VOLTAGE2.8 VRATED CURRENT1.68 ASTEP ANGLE (GEAR BOX SHAFT)0.36°AMOUNT OF PHASES2PHASE RESISTANCE1.65 ΩPHASE INDUCTIVITY3.2 mHISOLATION RESISTANCEMin. 100 MΩ at 500 V DCISOLATION CLASSB (130°)ROTATIONAL INERTIA75 g·cm²OPERATING TEMPERATURE-10 - 50 °CDIMENSIONS42 x 42 x 70 mmITEMS SHIPPEDNEMA 17-05 GM stepper motorEAN4250236818788ARTICLE NO.NEMA17-05GM
