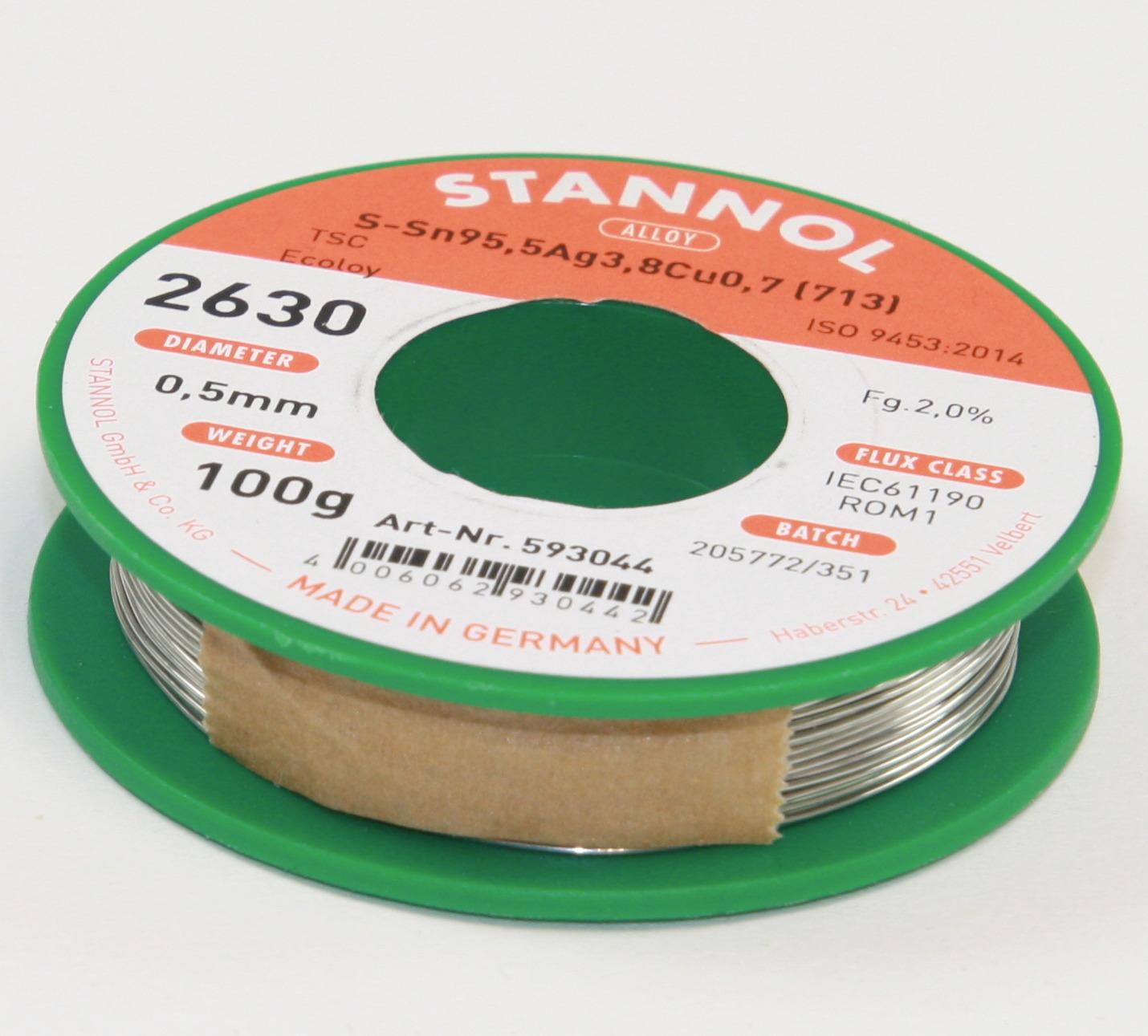

2630 TSC 2,0% 0,5mm 100g 593044

Gruppe: R5111STANNOL Lead-free Soldering Wires Ecoloy Halide-activated Flux 2,0% Diameter: 0,5, 0,7 and 1,0mm Series: 2630 TSCFeatures• Halide-activated natural resin flux• High activity, good spread and high residue reliability• High spread speed• Soldering points are glossy with few bright flux residues• Flux residues - can be left on the PCB• For soldering transformers and soldering copper cables with large cross sections• For soldering which requires a strong fluxing agent due to the extreme heat capacity of the component • Hand and robot solderingTechnical Specifications  Melting Point:217°CFlux Type (IEC 61190-1-3 ROM1):1.1.2.BFlux Content:2,0%Corrosive Effects (DIN 8516):NoneAlloy (ISO 9453:2006):S-Sn95Ag4Cu1/713Flux Core:1 CoreNote• You will find soldering stations and irons starting at product group T1121.• Soldering temperature and soldering time must accordingly be adjusted for lead-free solders.Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.stannol.de

• Kategori: 222
