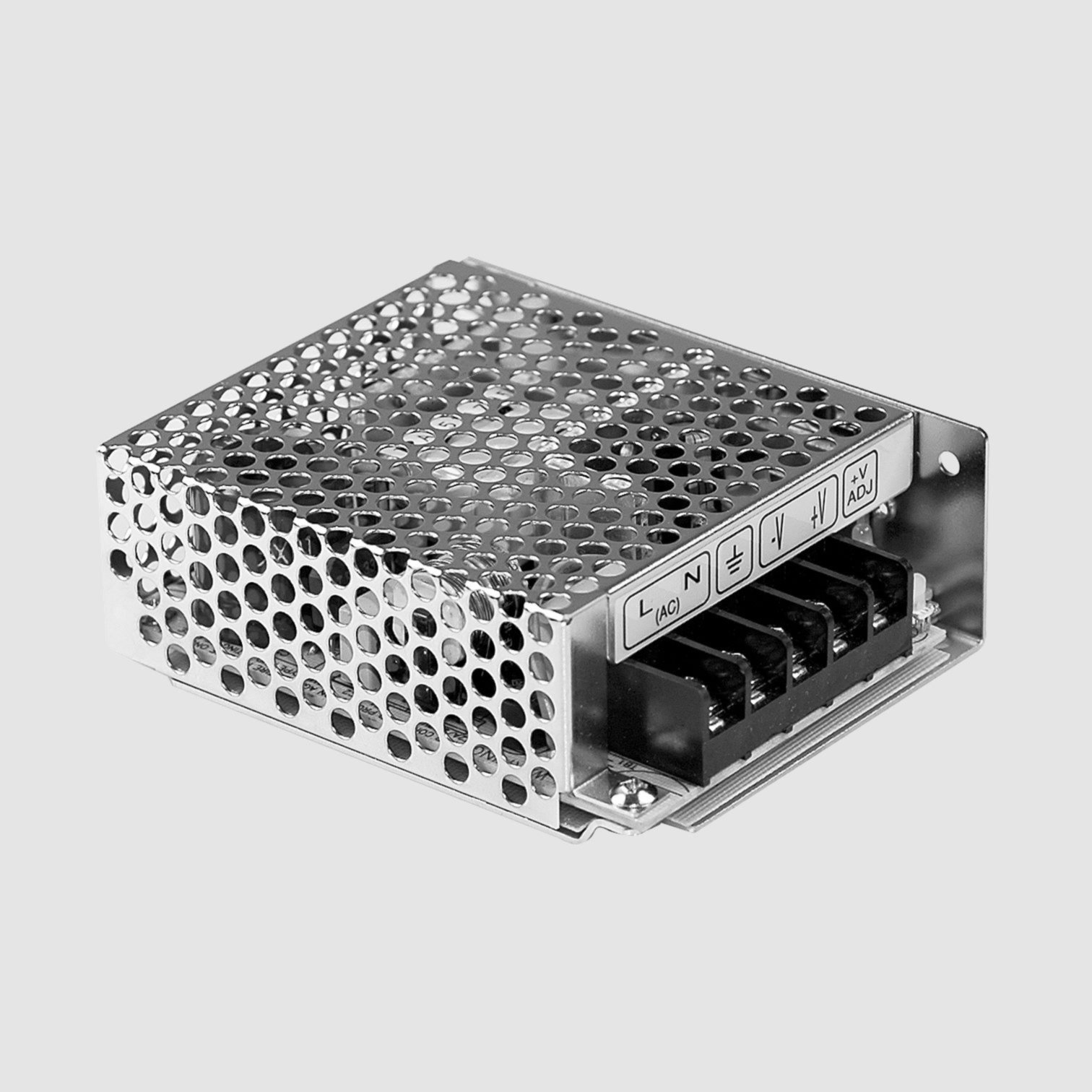

SPS Case 36W 15V/2,4A

Gruppe: L6122MEANWELL Switching Power SuppliesSeries: RS-35Case, Single OutputOutput: 23 to 38WFeatures• Enclosed case, screw terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltage• Long life 105°C electrolytic capacitorsTechnical SpecificationsInput Voltage:88...264V AC (47...63Hz)125...373V DCInput Inrush Current, Max.:36ALeakage Current, Max.:2mAOutput Voltage Adjustment:+10/-5%Over Load Protection:110...150%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-25...+70°CWeight:300gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPADUAURNh [V][A][W][%][mVp-p][%]RS-35-3.33,30...723,138076,5RS-35-550...73528080,5RS-35-12120...336112084,5RS-35-15150...2,436112086RS-35-24240...1,536112088RS-35-48480...0,838,4120088,5UA = Output Voltage, IA = Output Current Range, PA = Output Power, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = EfficiencyLabelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
