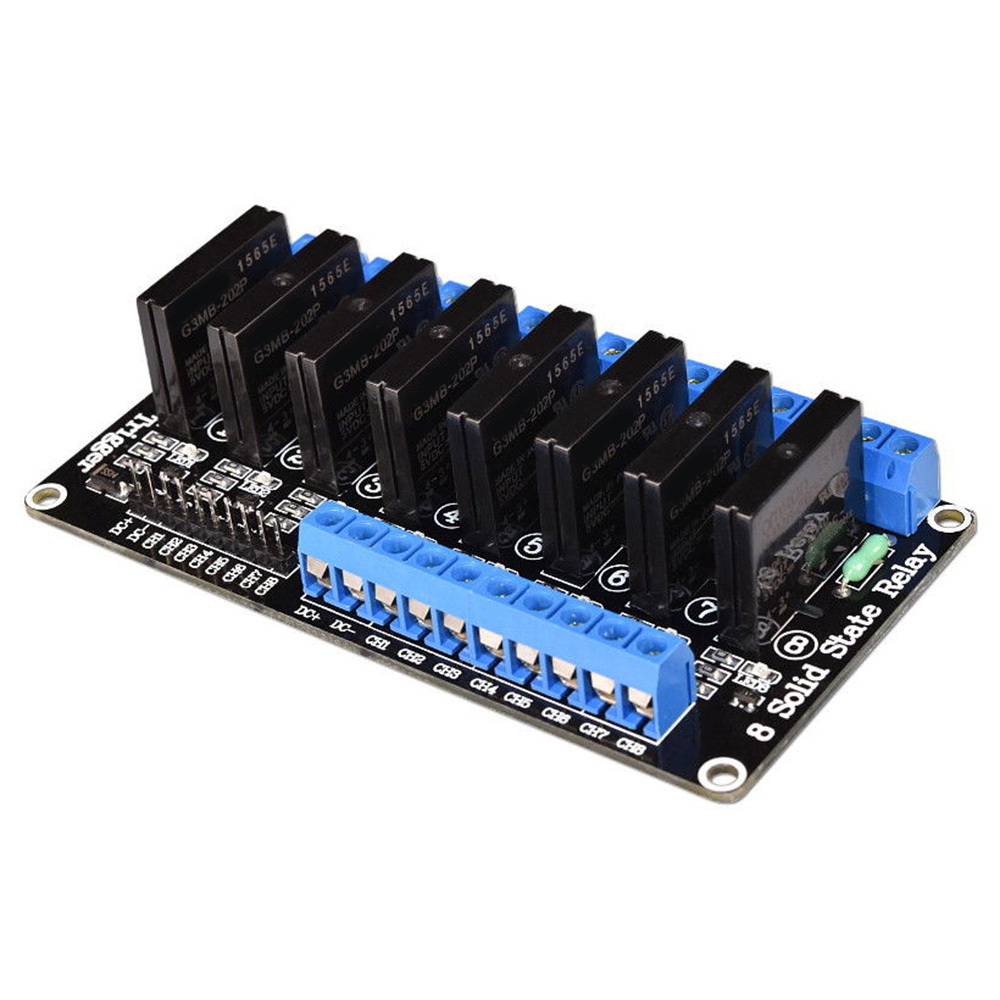

5V 8 Channel SSR Solid-State Relay High（or low） Level Trigger 2A 240V

5V 8 Channel SSR Solid-State Relay High（or low） Level Trigger 2A 240VProduct DescriptionSize: 103*53*21mm/4.05*2.08*0.82″The input power supply: 5V DC (160mA)The input control signal voltage:(0-2.5V low state relays ON)(3.3-5V state high relay OFF)2.54cm pin and blue KF301 terminals connected to the control line is more convenient.Module interface:Input section:DC +: positive power supply (relay voltage power supply)DC-: connect power negativeCH1: 1 signal to trigger the end of the relay module (low level trigger valid)CH2: 2-way relay module signal triggering end (low level trigger valid)CH3: 3 relay module signal triggering end (low level trigger valid)CH4: 4-channel relay module signal triggering end (low level trigger valid)CH5: 5-way relay module signal triggering end (low level trigger valid)CH6: 6-way relay module signal triggering end (low level trigger valid)CH7: 7-way relay module signal triggering end (low level trigger valid)CH8: 8-channel relay module signal triggering end (low level trigger valid)Voltage version quiescent current working current trigger voltage trigger current1-way 5V 0mA 13.8mA 0-2.5V 2mA2-way 5V 0mA 26.8mA 0-2.5V 2mA3-way 5V 0mA 37mA 0-2.5V 2mA4-way 5V 0mA 48mA 0-2.5V 2mA5-way 5V 0mA 59mA 0-2.5V 2mA6-way 5V 0mA 70mA 0-2.5V 2mA7-way 5V 0mA 81mA 0-2.5V 2mA8-way 5V 0mA 90mA 0-2.5V 2mAPackage Included:1 X 8 Channel 5V Solid State Relay Module
