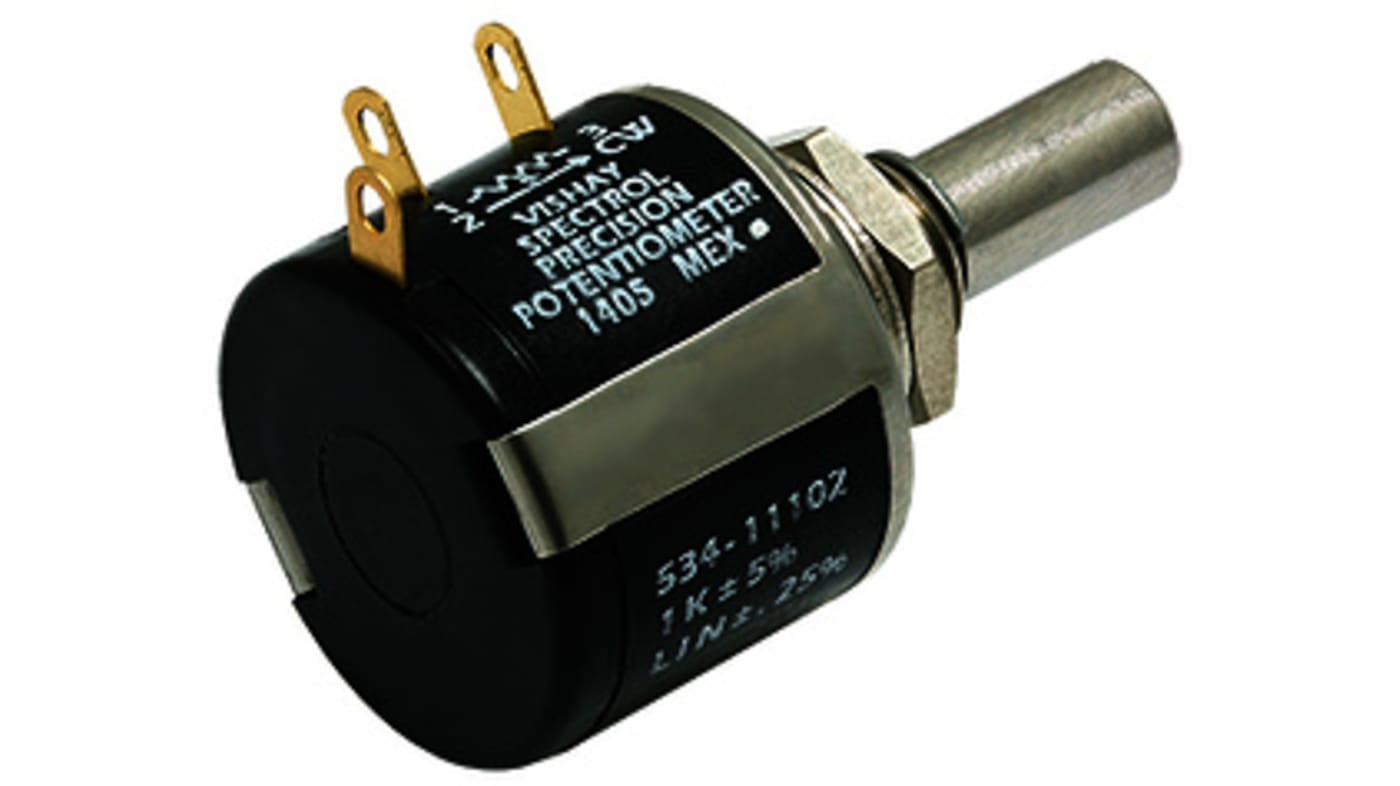

Wirewound Potentiometer 2W 1K

 • 6,35mm metal spindle, thread 3/8-32UNEF-2A• High mechanical strengthTechnical Specifications  Rated Dissipation (70°C):2WHold-off Voltage:500VDielectric Strength (RMS):1000VInsulation Resistance:103MOhmStandard Tolerance:±5%Independent Linearity:±0,25%Rotation AngleMechanical:3600° ±10°Electrical:3600° ±10°Operating Torque:0,28...0,35NcmEnd Stop Torque:53NcmTemperature Range:-55...+125°CTemperature Coefficient (Typ.):20ppm/°C

• Kategori: 222
