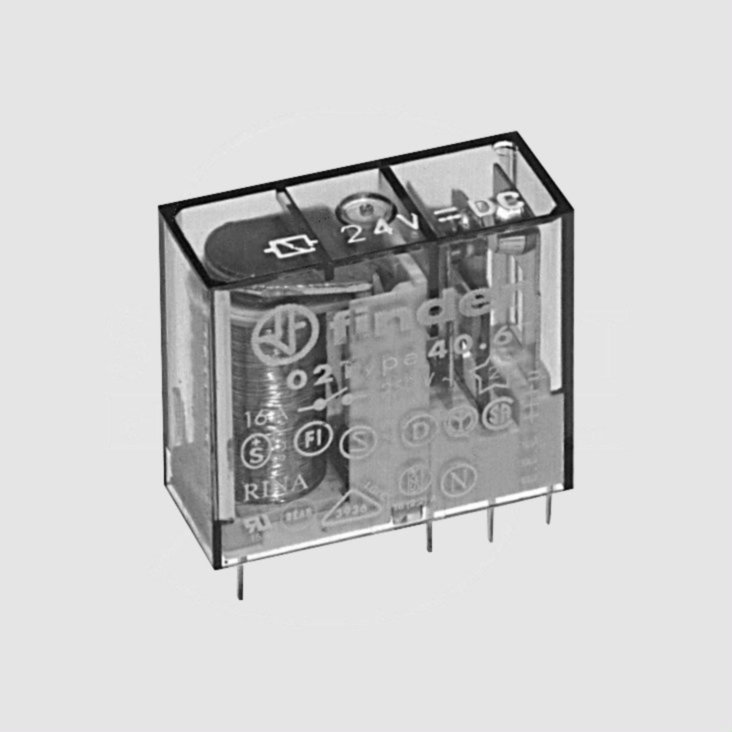

Relay SPDT 16A 230VAC 28K 40.61.8.230.4000

Gruppe: E6416FINDER Power PCB RelaysSeries: 40.61Contact: SPDTRated Current: 16AHousing: 29,0x12,4x25,0mmFeatures• Versions with DC or AC coil• Flux protection (260°C, 5s)• Relay protection class RTIITechnical SpecificationsContact:SPDT (Double Contact)Contact Material:F4061-12, -24:AgCdOF4061-_A:AgSnO2Rated Current:16AMax. Switching Current:30AMax. Switching Voltage:400V ACMax. Switching Power (AC/DC):750/4000VACreepage/Clearance:8mmOperate/Release Time:7/3msTesting VoltageCoil/Contact:6000VOpening Contact:1000VLifetimeMechanical (AC/DC):10x106/20x106 OpetationsElectrical:10x104 OperationsOperating Temperature:-40...+85°CCoil DataPart Nr.UNUmin.Umax.INPNRN [V DC/AC][V][V][mA][mW][W]F4061-12128,81855650220F4061-12A128,81855650220F4061-242417,53627650900F4061-24A2417,53627650900F4061-AC230A2301842535-28000UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°CNote• Assembly by direct soldering in the PCB or• PCB socket F95132 with retaining clip F9551SW rather F95523, see product group E6481, or• DIN rail socket F95833 with retaining clip F95913, see product group E6485NormsThe series complies with VDE0106, EN50178, EN60204 and EN60335 secure Separation between coil and contacts.Labelling Approvals Additional ProductsFor contact loads of up to 15V DC/AC or in 5 to 20mA range, relays with silver contacts and hard overlays are recommended; 500 pieces available on request, delivery time approx. 8 weeks. Wash tight version of 500 pieces available on request, delivery time approx. 8 weeks.Terms of DeliveryMinimum order quantity: 1 PKU = 10 piecesF4061-AC230: 1 PKU = 5 piecesManufacturer http://www.findernet.com
