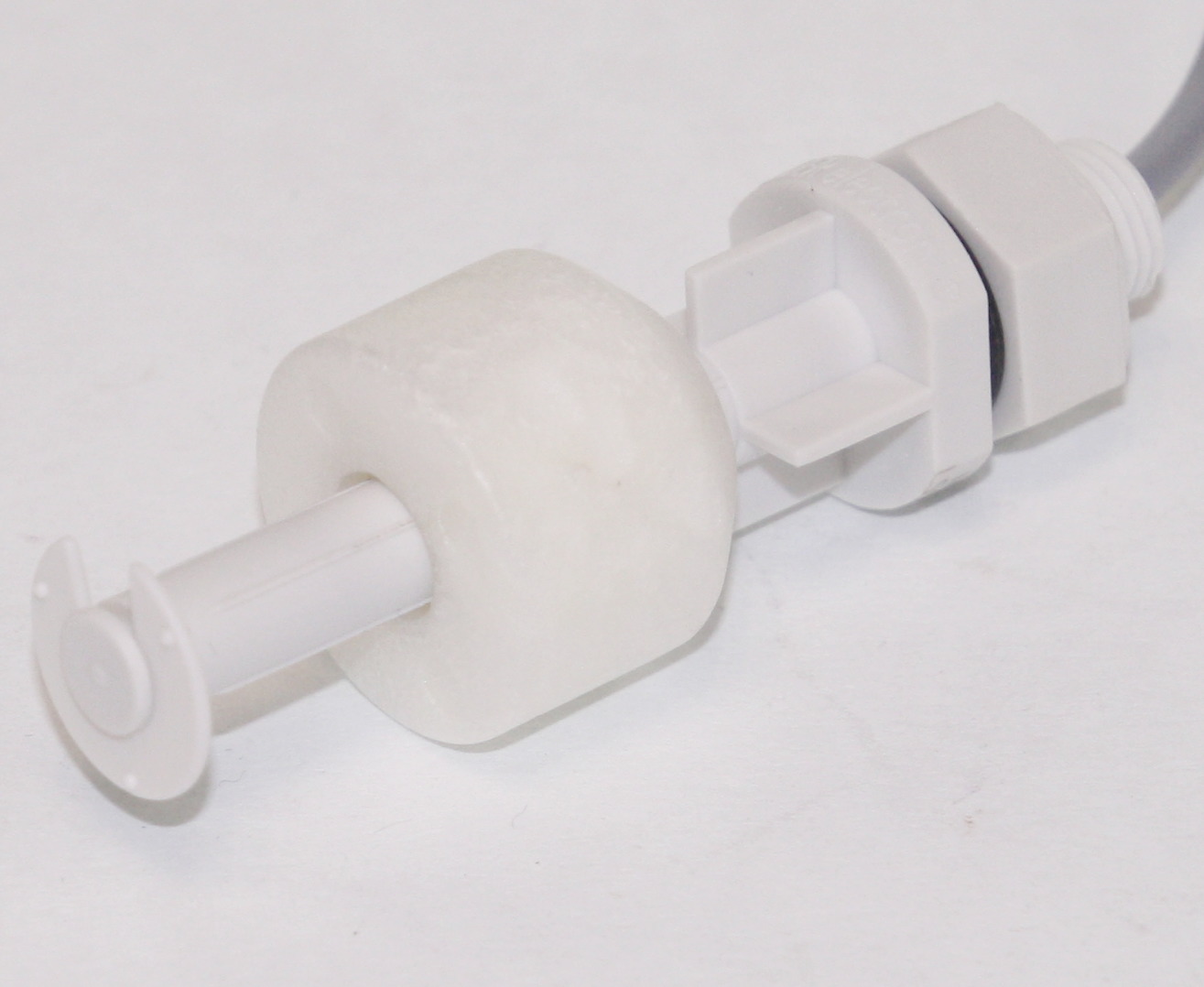

Niveauføler for væsker SPST-NO vertical

Gruppe: E4213MEDER Reed Level Sensors Series: MLS With Magnet Float Contact SPST-NO (kontakten er sluttet, ON, når flyderen er længst væk fra ledningen)Features • To monitor point levels in containers for automotive applications, measuring and control and domestic applications• Suitable for use in plain or acidic water• Chimney, float and screw made from polypropylene (PP)• Sealed with nitril-rubber• Sealing material CY221• Leads pass through a 500mm long round cable, LIYY 2x0,14mm2• Cable end cut, 30mm stripped, core approx. 5mm stripped and tinnedApplicationMLS21A-PP: for vertical installation in containersMLS31A-PP: for horizontal installation in containersTechnical Specifications  Type of Contact:SPSTSwitching Capacity, Max.:10WSwitching Voltage, Max.:200V DCSwitching Current, Max.:0,5ACurrent at Closed Contacts:1,25AContact Resistance, Max.:150mWBreakdown Voltage, Min.:225V DCOperate Time incl. Bounce:0,5msRelease Time:0,1msTemperature Range:-20...+90°CTerms of DeliveryMinimum order quantity: 1 PKU = 5 piecesManufacturerhttp://www.meder.com

• Kategori: 222
