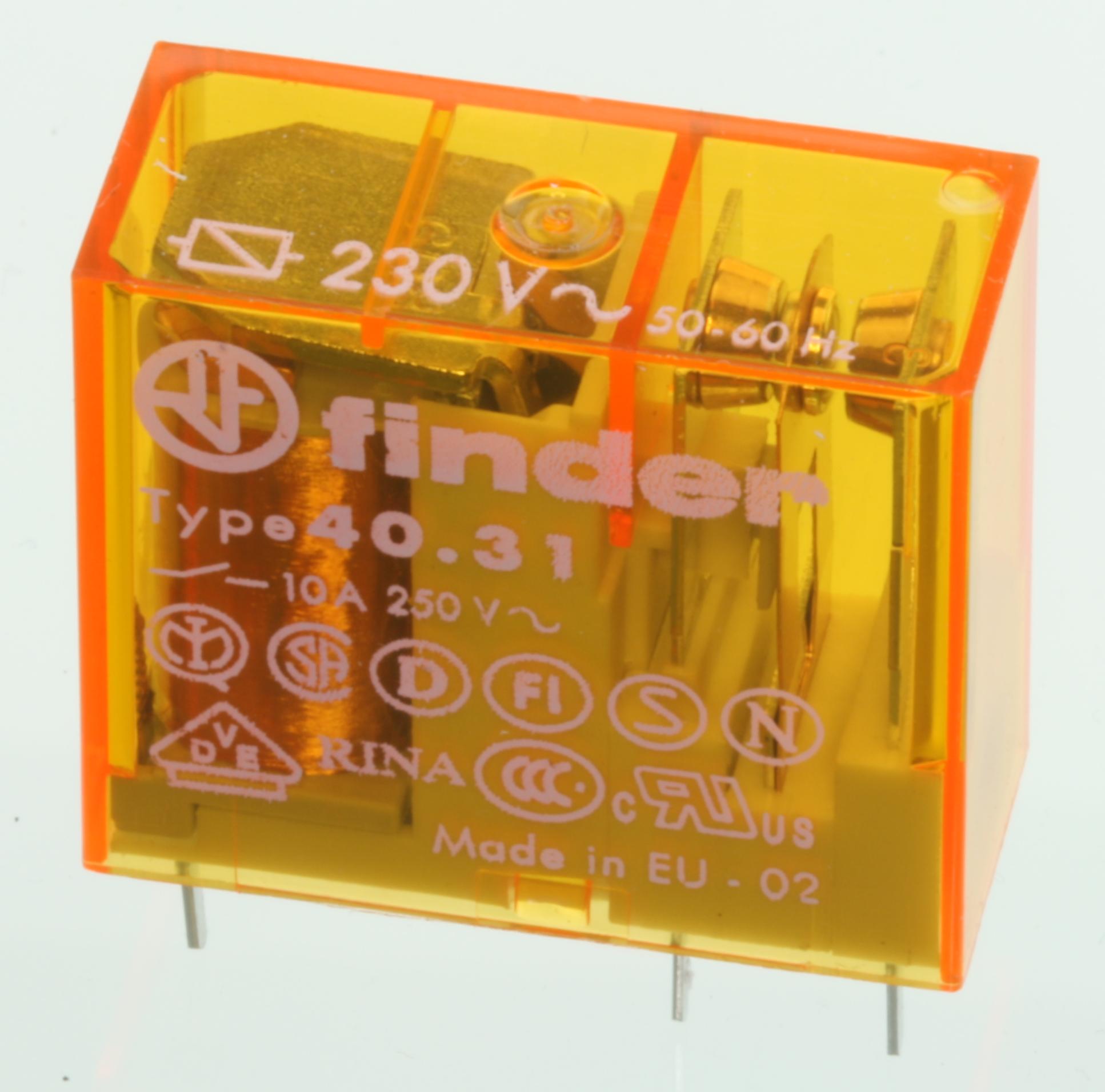

PCB Relay SPDT 10A 230VAC 28K 40.31.8.230.0000

RELAY, PCB, SPCO, 240VAC Relay Type: Miniature Coil Voltage VAC Nom: 240V Contact Current Max: 20A Contact Voltage AC Nom: 250V Coil Resistance: 31.5kohm Contact Configuration: SPCO Coil Type: AC Coil Current: 4.1mA Nom Operating Power: 1.2VA Relay Mounting: PCB External Height: 29mm External Width: 12.4mm External Depth: 25mm SVHC: No SVHC (19-Dec-2011) Approval Bodies: BEAB / CSA / DEMKO / IMQ SEMKO / NF-USE / SETI / SEV / UL / VDE Approval Category: VDE, BEAB, UL, CSA, SEV, NF-USE, SETI, IMQ SEMKO, DEMKO Coil Operating Lower Percent Limit: 80% Coil Operating Upper Percent Limit: 150% Contact Configuration: SPCO Contact Current AC Max: 10A Contact Current DC Max: 10A Contact Material: Silver Nickel Contact Voltage AC Max: 240V Contact Voltage DC Max: 30V DC Coil Power: 500mW External Length / Height: 29mm Mounting Type: PCB No. of Poles: 1 Operating Temperature Max: 70°C Operating Temperature Min: -20°C Operating Time: 10ms PCB Hole Diameter: 1.5mm Release Time: 7ms Series: 4040.31.8.230.0000
