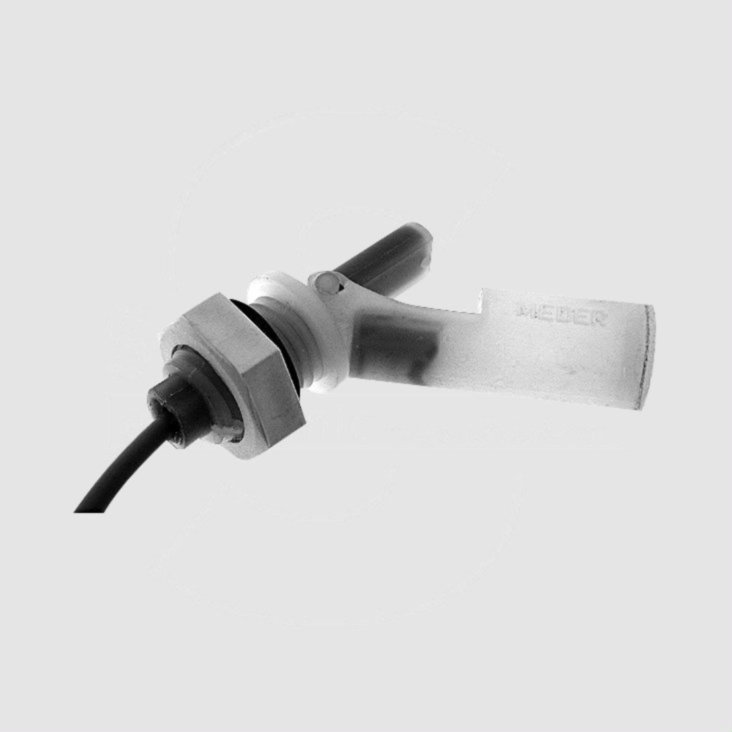

Niveauføler for væsker SPST-NO horisontal

Features • To monitor point levels in containers for automotive applications, measuring and control and domestic applications• _PP: for use in plain or acidic water; chimney, float and screw made from polypropylene• _PA: for oil; chimney, float and screw made from polyamide• Sealed with nitril-rubberTechnical Specifications  Type of Contact:SPSTSwitching Capacity, Max.:10WSwitching Voltage, Max.:200V DCSwitching Current, Max.:0,5ACurrent at Closed Contacts:1,25AContact Resistance, Max.:150mOhmShock Resistance, Max.:50GVibration Resistance, Max.:20GOperating Temperature Range*LS01_:-20...+80°CMLS2_:-30...+80°CMKL3_/LS03_:-20...+80°C* Cable not moved

• Kategori: 222
