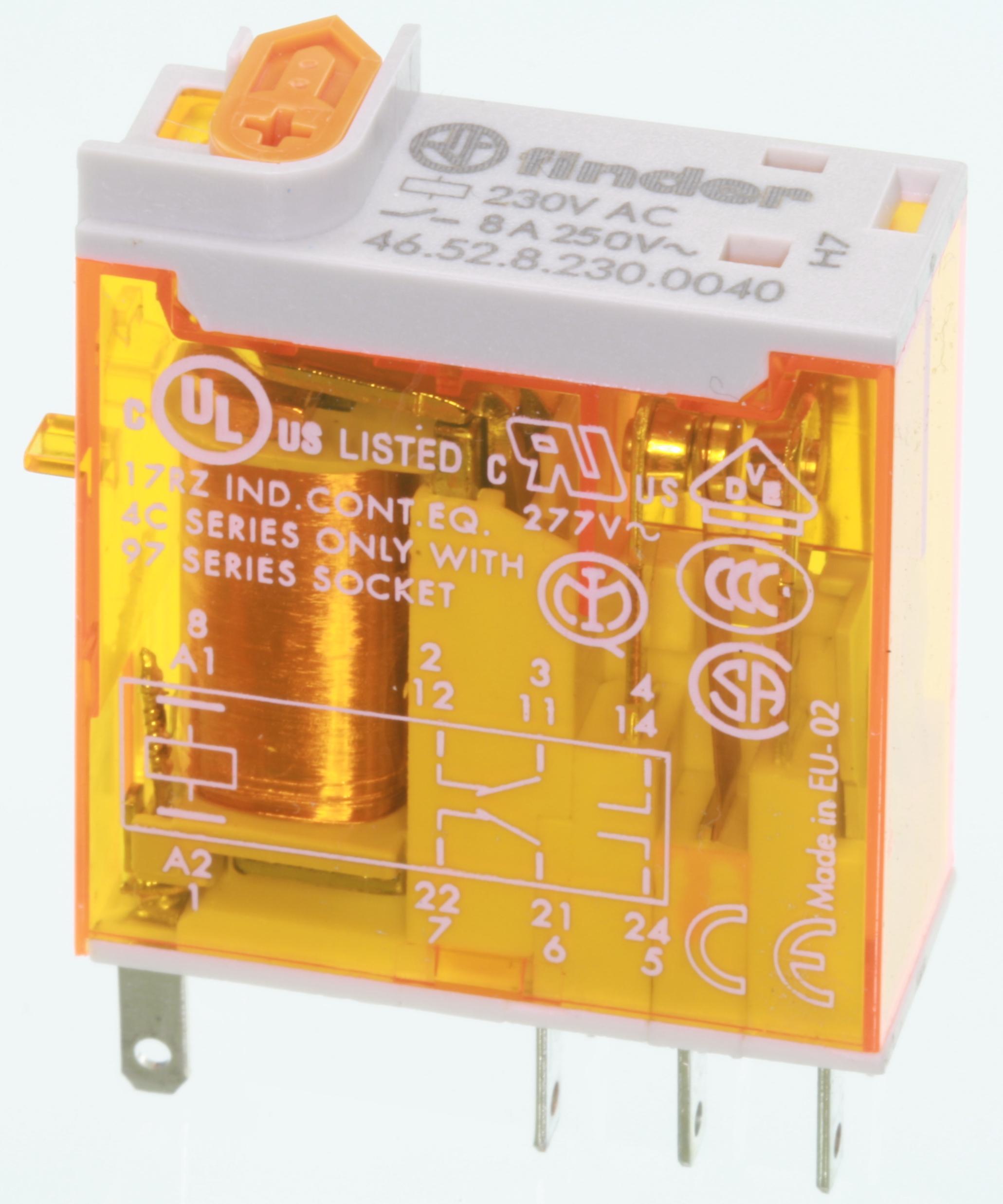

Finder Relæ 230VAC/0,5VA/28000R/2xSkifte/8A250VAC

Gruppe: E6611FINDER Industrial Relays Series: 46 Contact: DPDT, SPDT Rated Current: 8A and 16A Housing: 29x12,4x32,8mmFeatures• Socket mount or direct connection via Faston connectors• AC coils & DC coils sensitive (500mW)• Available with: lockable test button, mechanical indicator• Relays protection class RTIITechnical Specifications  ContactF4652-_:DPDTF4661-_:SPDTContact Material:AgNiRated CurrentF4652-_:8AF4661-_:16AMax. Switching CurrentF4652-_:15AF4661-_:25AMax. Switching Voltage:440V ACMax. Switching PowerF4652-_:2000VAF4661-_:4000VAOperate/Release TimeF4652-_:10/3msF4661-_:15/5msTesting VoltageCoil/Contact:6000VOpening Contact:1000VLifetimeMechanical:10x106 CyclesElectrical:10x104 CyclesOperating Temperature:-40...+70°CCoil Data       Part Nr.UNUmin.Umax.INPNRN [V AC/DC][V][V][mA][mW][W]F46_-12128,813,240500300F46_-242417,526,4205001200F46_-AC242419,226,445-320F46_-AC2302301842535-28000UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°CNote• Assembly by direct soldering in the PCB or• Screw socket DIN-rail assembly F9702, F9752 with retaining clip F0901, see product group E6615NormsSecure separation between coil and contacts with VDE0106, EN50178, EN60204 and EN60335.LabellingApprovals Terms of DeliveryMinimum order quantity: 1 PKU = 5 piecesManufacturerhttp://www.findernet.com

• Kategori: 222
