SPS Open Frame 25W 5/-5V

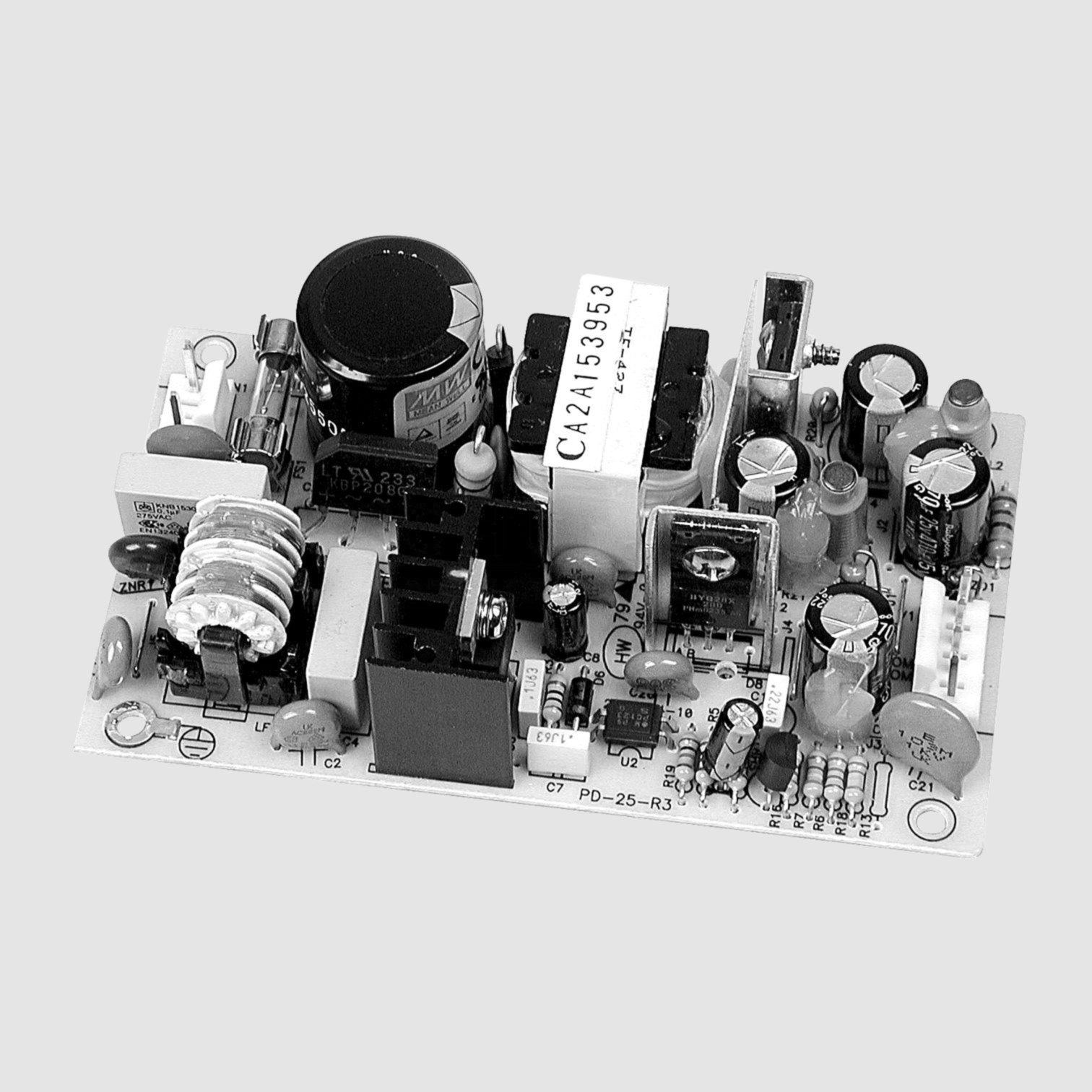

Gruppe: L7143MEANWELL Switching Power SuppliesSeries: PD-25Open Frame, Dual OutputOutput: 24 to 25WFeatures• Open frame• Contact pin for nylon-crimp terminals• Universal input• Overload protection, pulsing hiccup shutdown, auto recovery• Protections: short circuit/over load/over voltageTechnical SpecificationsInput Voltage:85...264V AC (47...63Hz)120...370V DCInput Inrush Current, Max.:32ALeakage Current, Max.:0,5mAOver Load Protection:>105%Withstand VoltageI/P-O/P:3000V ACI/P-FG:1500V ACO/P-FG:500V ACOperating Temperature:-10...+60°CWeight:150gI/P = Input, O/P = Output, FG = Frame GroundPart Nr.UAIAPA1)DUAURNh [V][A][W][%][mVp-p][%]PD-25A50,2...2,52525071 120,1...1,5 6150 PD-25B50,2...225,225077 240,1...1 6200 PD-250550,1...32565073 -50,1...2,5 650 PD-2512120,1...1,22445074 -120,1...1,2 450 PD-2515150,1...12445075 -150,1...1 450 UA = Output Voltage, IA = Output Current Range, PA = Output Power, Uadj = Output Voltage Adjustment, DUA = Output Voltage Tolerance, URN = Ripple & Noise, h = Efficiency, 1) The Sum of the Power Used by the Individual Channels Must Not Exceed the Total Power Rating.NoteYou will find suitable crimp housings in product group L7611.Labelling Terms of DeliveryMinimum order quantity: 1 PKU = 1 pieceManufacturer http://www.meanwell.com
