Dateq SPL-D2 Display

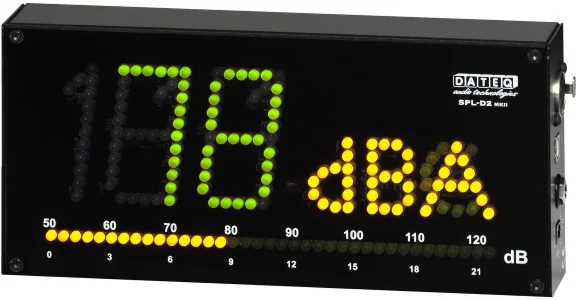

The SPL-D2 is a sound pressure meter. This device can be used both as a "stand-alone" device, but it is also possible to connect the SPL-D2 to an SPL5 limiter. The display consists of high-efficiency bi-color LEDs. This makes it clearly readable at a distance. DESCRIPTION When the SPL-D2 works together with an SPL5, the measured values of the SPL5 are readable on the display. The bar at the bottom can be used as a sound pressure indication, or as a reduction meter. If the SPL-D2 is used as a stand-alone device then the measuring microphone must be connected. The display now shows the current sound pressure level. Once the sound pressure level exceeds a preset value the figures will light up red. This function can be used as an indication for a live band, for example. If the SPL-D2 is used with a measuring microphone, a choice of three measuring curves can be made: ANSI-A ANSI-B ANSI-C The SPL-D2's settings can be adjusted with the supplied software. SPL-D2: - Large clearly readable digits - Can be used freestanding, or in conjunction with the SPL5 - Display dims automatically in dark surroundings - Color of digits changes above an adjustable value - Can be paired with the SRL-1 to function as a circuit breaker Software: - Supported by Windows 98, ME, 2000, XP, 7, 8, 10 - Display brightness is adjustable - Threshold can be adjusted - Microphone sensitivity can be adjusted - Limiter function can be adjusted
- Mærke: Dateq
- Kategori: AGENTUR > Dateq > Limiters
- GTIN: 7101128000316
