dBTechnologies aktiv monitor

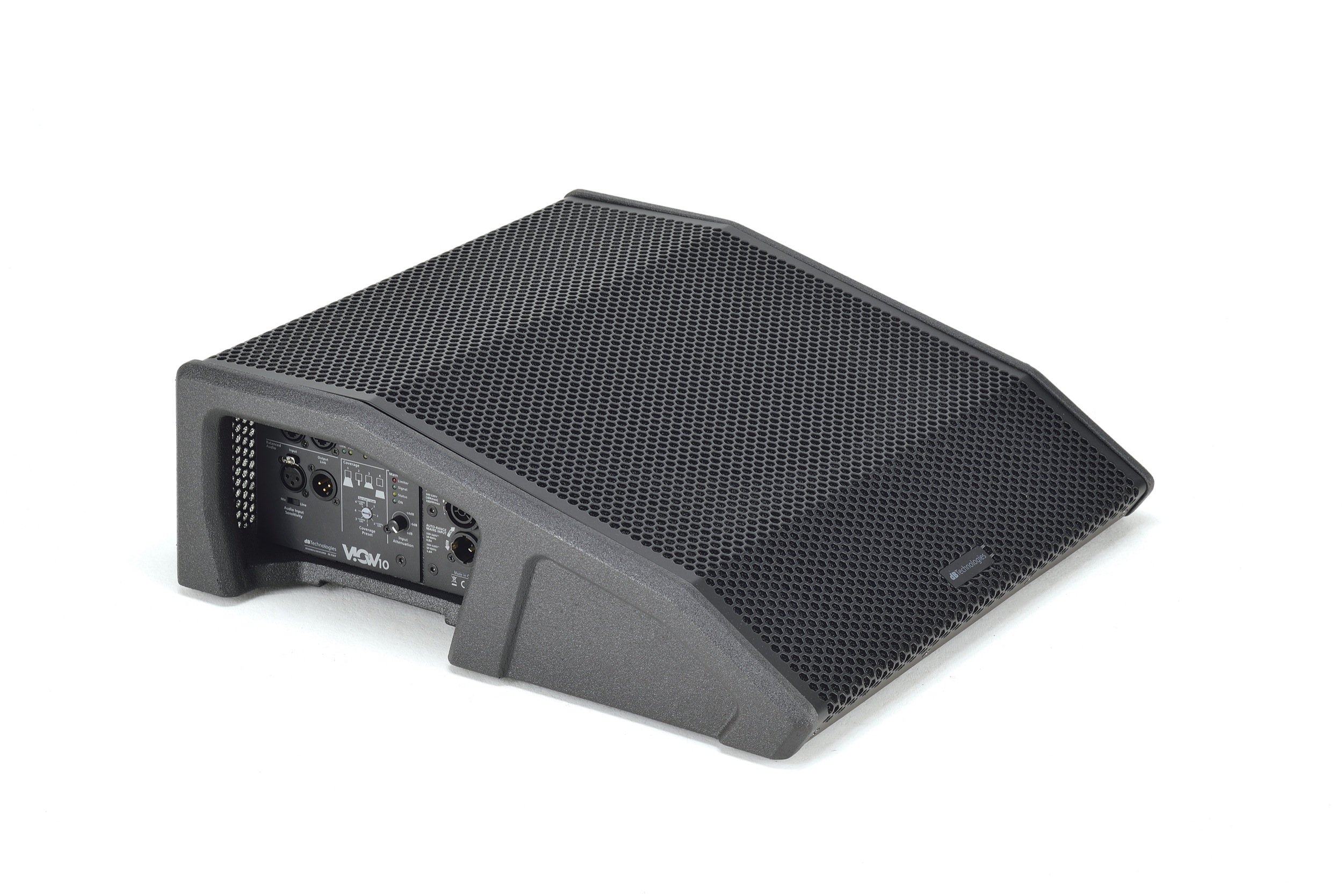

The ultra-slim wedge speaker designed to be discreetly integrated in broadcast studios, theatre stages, congress facilities and wherever an unobtrusive and versatile wedge is needed FEATURES Active 2-way wedge speaker Innovative ultra-slim design Height 165 mm only 400W RMS Class-D amplifier Anti-feedback acoustic configuration Variable acoustic focus Remote control via RDNet Exclusive front-rear grille design Technical Data Speaker Type: 2-Way Active Wedge Monitor Acoustical data Usable Bandwith [- 10 dB]: 58 - 15,000 Hz Frequency Response [- 6 dB]: 68 - 14,000 Hz Max SPL: 126 dB HF: 4x 4" - 1" v.c. Neodymium LF: 1x 10" - 2.5" v.c. Horizontal Directivity: Dependent on Focus Preset Vertical Directivity: Dependent on Focus Preset Amplifier Amplifier: 400 W RMS Class D Digipro® G3 Cooling: Convection Power Supply: Auto-range SMPS Processor Controller: DSP 28/56 bit Converter AD/DA: 24 bit/48 kHz Limiter: Peak, RMS, Thermal Processing (filters): Linear Phase FIR Filters Input Signal Input: 1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service) Signal Output: 1xXLR male, 1x RJ45 Link (RDNet) Power Socket: 1x PowerCON TRUE1 In 1xPowerCON TRUE1 Out Controls: 1x Rotary Encoder (8 presets) 1 x Input Sensitivity Encoder 1xMic /line switch 1x On LED 1x Status -LED 1x Signal LED 1x Limiter LED Mechanics Housing: Wooden cabinet, Polyurea painting Handles: 1 on left side Width: 450 mm (17.71 in) Height: 165 mm (6.49 in) Depth: 480 mm (18.89 in) Weight: 13.7 kg (30.20 lbs)
- Mærke: dBTechnologies
- Kategori: AGENTUR > dBTechnologies > VIO W Series
- GTIN: 8054317630292
