dBTechnologies system

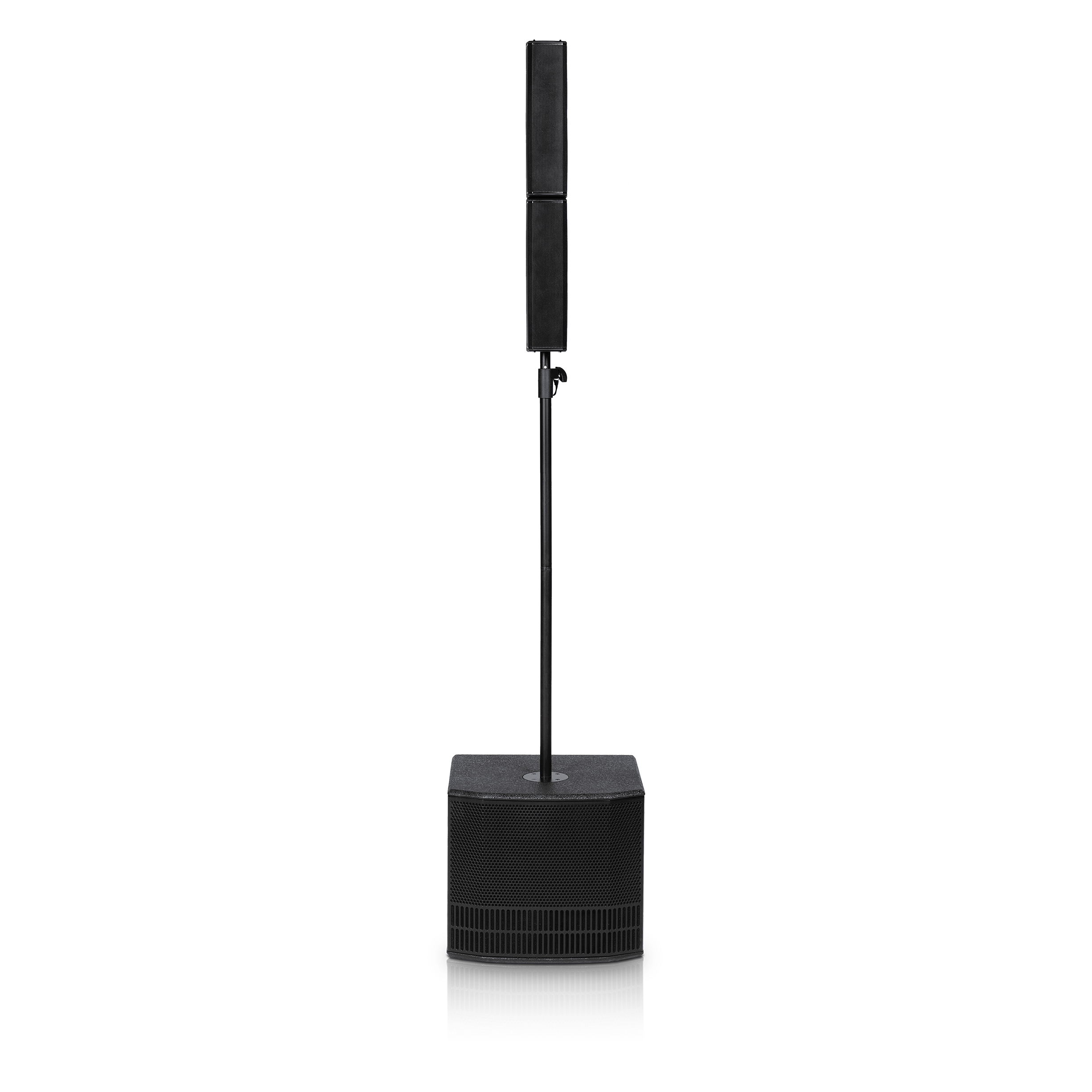

ES503 is the ultimate portable column speaker PA system. Perfect as a portable PA system for live sound as well as playback applications, ES provide a simple yet powerful plug-and-play solution for solo musicians or small bands, and is the must-have sound system in the touring DJ equipment, thanks to a built in digital mixer and a stereo Bluetooth audio receiver. FEATURES 3 AMPED STEREO SYSTEM 2 FULLRANGE TOPS+1 ACTIVE SUBWOOFER HF-MF 8X3" (FOR EACH TOP) LF 12" 1000W PEAK POWER MAX 121 dB SPL STEREO OR MONO CONFIGURATION OLED DISPLAY INTERFACE ON-BOARD3-CHANNEL MIXER 3 INPUT CHANNELS (MIC/INSTR/LINE) CUSTOMIZABLE OUTPUT CHANNEL (MIX/MONITOR/AUX) BLUETOOTH® STEREO STREAMING Technical Data Speaker Type: 3-amped Stereo System with two full-range tops and one subwoofer Acoustical data Frequency Response [-10dB]: 37 - 15.000 Hz Max SPL: 121 dB MF - HF: 8x 3" Type MF - HF: Neodymium LF: 12" Directivity: 95x65° Amplifier Amp Technology: Digipro® G3 Amp Class: Class-D Power Amp Peak: 1000 W Processor Controller: DSP 24 Bit/48 kHz System Presets: Factory presets + User defined Limiter: Dual Active, Peak, RMS, Thermal Crossover Frequency LF-HF: 206 Hz Input Mic/Instrument Channel: 1x Combo (XLR/Jack) balanced/unbalanced input Line Channels: 2x Combo (XLR/Jack) balanced/unbalanced inputs Media Channel: 1x Bluetooth® built-in receiver Mix Output: 1x XLR balanced output Mechanics Housing (Subwoofer): 15mm Black Painted Plywood Housing (Tops): Polypropylene PP Handles: 2x lateral side (Subwoofer) Width (Top): 95 mm (3.74 in) Height (Top): 360 mm (13.98 in) Depth (Top): 137 mm (5.39 in) Width (Subwoofer): 465 mm (18.3 in) Height (Subwoofer): 400 mm (15.7 in) Depth (Subwoofer): 430 mm (16.9 in) Weight (Top): 1.9Kg – 4.19lbs. Weight (Subwoofer): 16.4Kg – 36.16lbs.
- Mærke: dBTechnologies
- Kategori: AGENTUR > dBTechnologies > ES Series
- GTIN: 8058159114569
