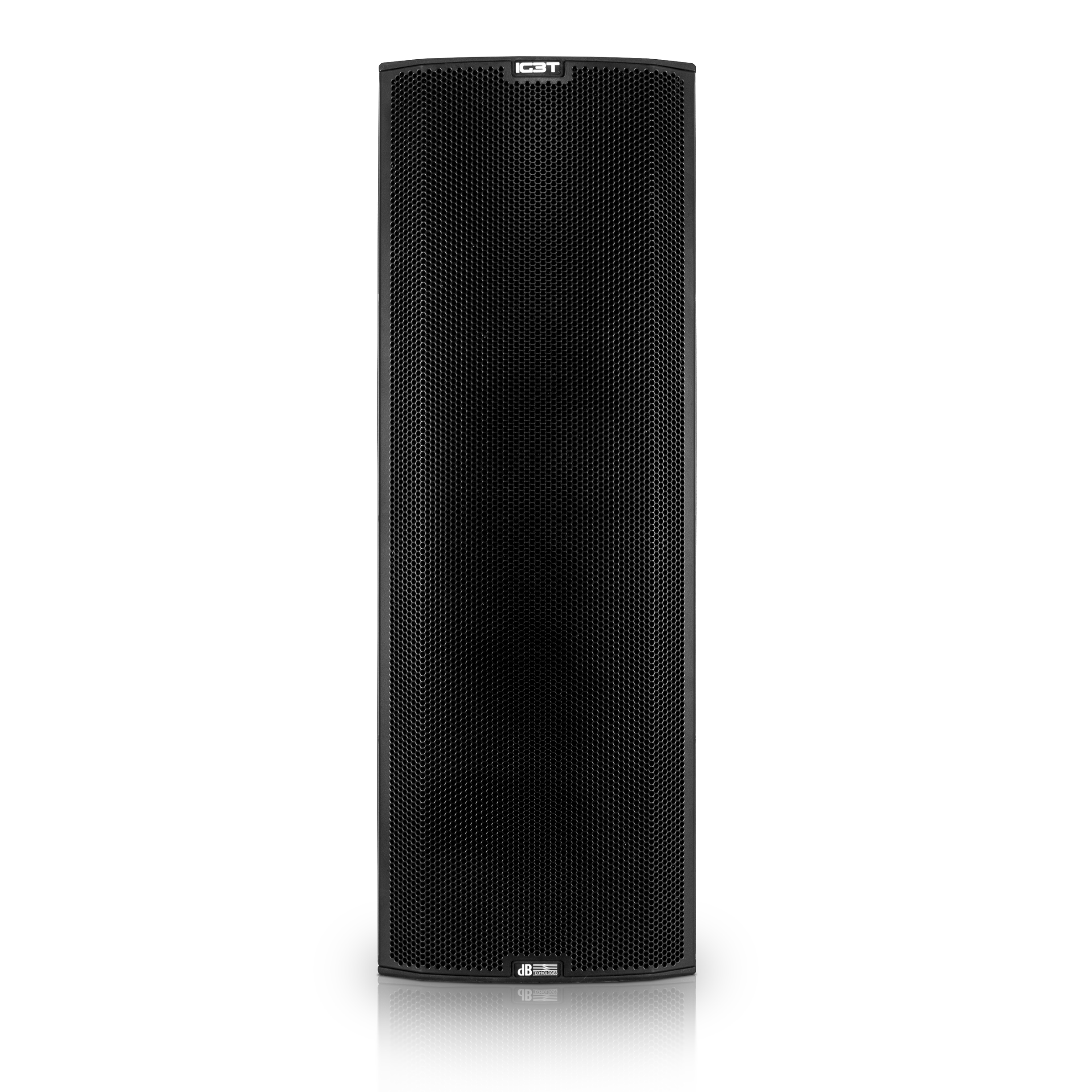

dBTechnologies aktiv højtt
FEATURES CEC HORN TECHNOLOGY (ASYMMETRICAL VERTICAL COVERAGE) DIGITAL STEERING COVERAGE ELEMENT POSITION DETECTION (IR PORT) SPEAKERS WITH NEODYMIUM MAGNETS OLED DSP INTERFACE UNIQUE SPEAKER LOCK SYSTEM Speaker Type 2-Way Active Speaker Acoustical data Frequency Response [-10dB] 53 – 20.000 Hz Frequency Response [-6dB] 57 – 19.200 Hz Max SPL 132dB HF 1.4”, 3” v.c. Directivity (HxV) 110 x 90 g Type HF Neodumium Compression Driver Horn Vertical asymmetric Crossover Frequency 1100 Hz LF 2 x 10”, 2,5” v.c. Type LF Neodymium Amplifier Amp Technology Class-D, Digipro G3 RMS Power 900 Watt Peak Power 1800 Watt Processor Controller DSP 56 bit AD/DA converter 24 bit/48 kHz Limiter Peak, Thermal Limiter Rear Panel User Interface OLED display + rotative knob w/seitch Signal Input 1 x Combo IN (XLR + Jack 6.3mm) Signal Output 1 x XLR link OUT Service Port Mini USB Mains Connector New Neutrik NAC3PX Features Positioning Self-rotating display Accelerometer Infrared Communication and Display Mirroring Digital Steering +10g/+5g/0g/-5g/-10g EQ Acoustic Correction (Lo/Hi Shelving, Mid Attenuation) HPF and Sub Matching (70Hz – 120 Hz, Step 5Hz) Microphone HPF and Notch Filter (Variable Freq) Delay On Board 15 Meters (Stage Alignement) +43.7m (System Delay) Mechnaics Housting Polypropylene PP reinforced Grill FULL / Invisible screws Flyable YES Handles 1 x on top / 1 x on bottom Polo Mount Standard D36mm Dimensions (weith x Height x Depth) 280 x 806 x 3139mm Weight 20.8kg
- Mærke: dBTechnologies
- Kategori: AGENTUR > dBTechnologies > Ingenia
- GTIN: 8058159114668
