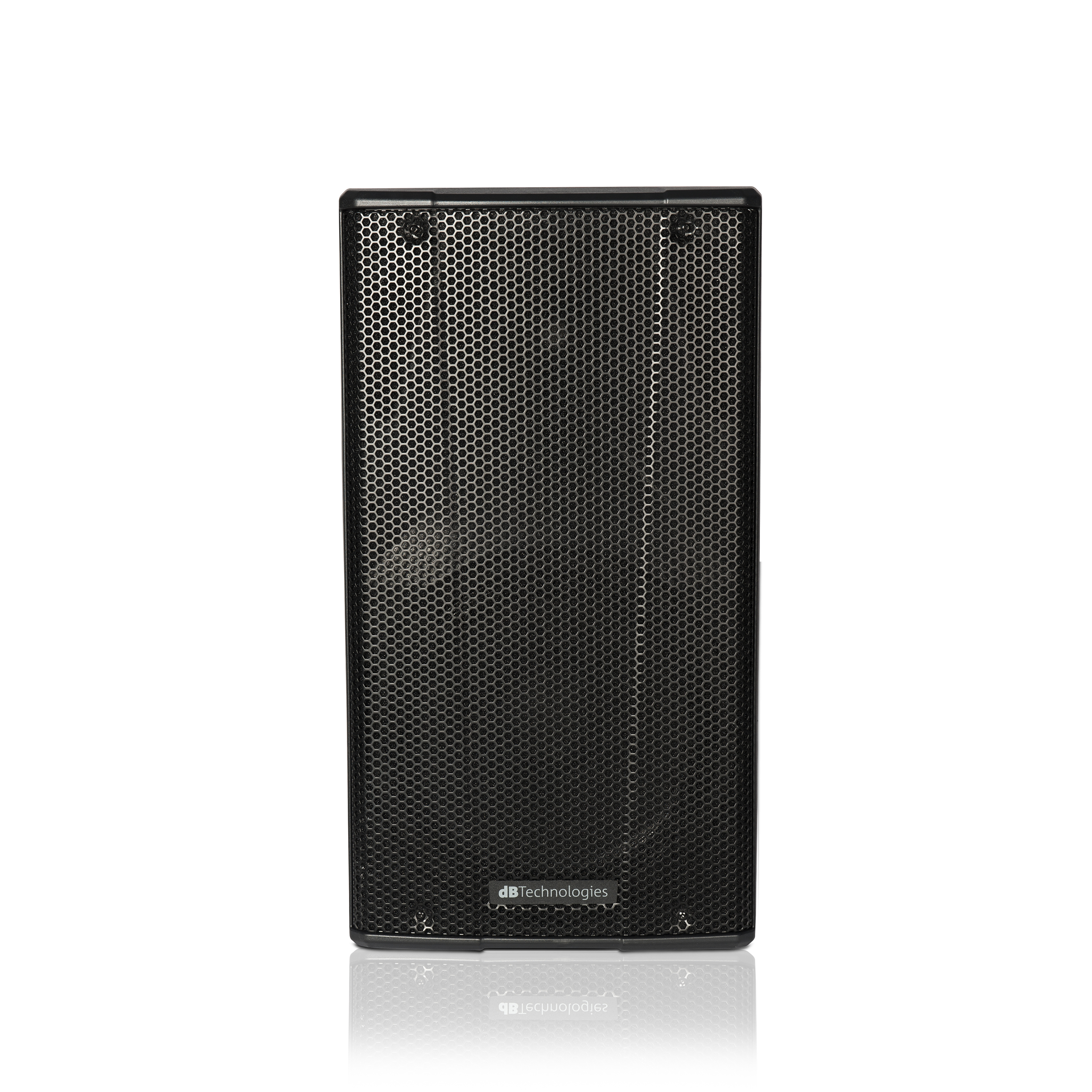

dBTechnologies aktiv højtt
The active two-way speaker series providing a professional sonic performance to all kind of users. The most accurate sound reproduction combined with aggressive sound pressure levels and enhanced portability. FEATURES Maximum efficiency up to 126 dB SPL Professional acoustic performance Innovative horn design for uniform and extended coverage Compact featherweight Clean and contemporary design enhancing portability 3 handles Double stage monitor angle Preset EQ Flat /Boost Technical Data Speaker Type: 2-Way Active Speaker Acoustical data Usable Bandwidth [-10dB]: 55 - 20.000 Hz Frequency Response [-6 dB]: 61 - 19.500 Hz Max SPL: 126 dB Type HF: Compression Driver HF voice coil: 1 " LF: 12 " LF voice coil: 2 " Crossover Frequency: 2100 Hz (24 dB/oct.) Horizontal Dispersion: asymmetrical 85° up / 120°down Vertical Dispersion: 85° (+25/ -60°) Amplifier Amp Technology: Custom Made Amp Class: Class D - Passice cooling (convection) Power Peak: 400 W Processor Controller: DSP 28/56 bit- 48 kHz Limiter: Peak, RMS, Thermal Controls: Volume, Audio Input Sensitivity, DSP Preset Input Main Connection: DE Signal Input: Balanced 1xCombo IN (MIC/LINE) SIGNAL Out: (Balanced) 1xXLR OUT (LINK) Mechanics Housing: Polypropylene Grille: Full Metal Grille Handles: 3 (2 on side 1 on top) Pole Mount: 36 mm Width: 350 mm (13.77 in) Height: 645 mm (25.40 in) Depth: 330 mm (12.99 in) Weight: 13.9 kg (30.46 lbs) Angles Up: Double wedge angle 45°
- Mærke: dBTechnologies
- Kategori: AGENTUR > dBTechnologies > B-Hype
- GTIN: 8058159116495
