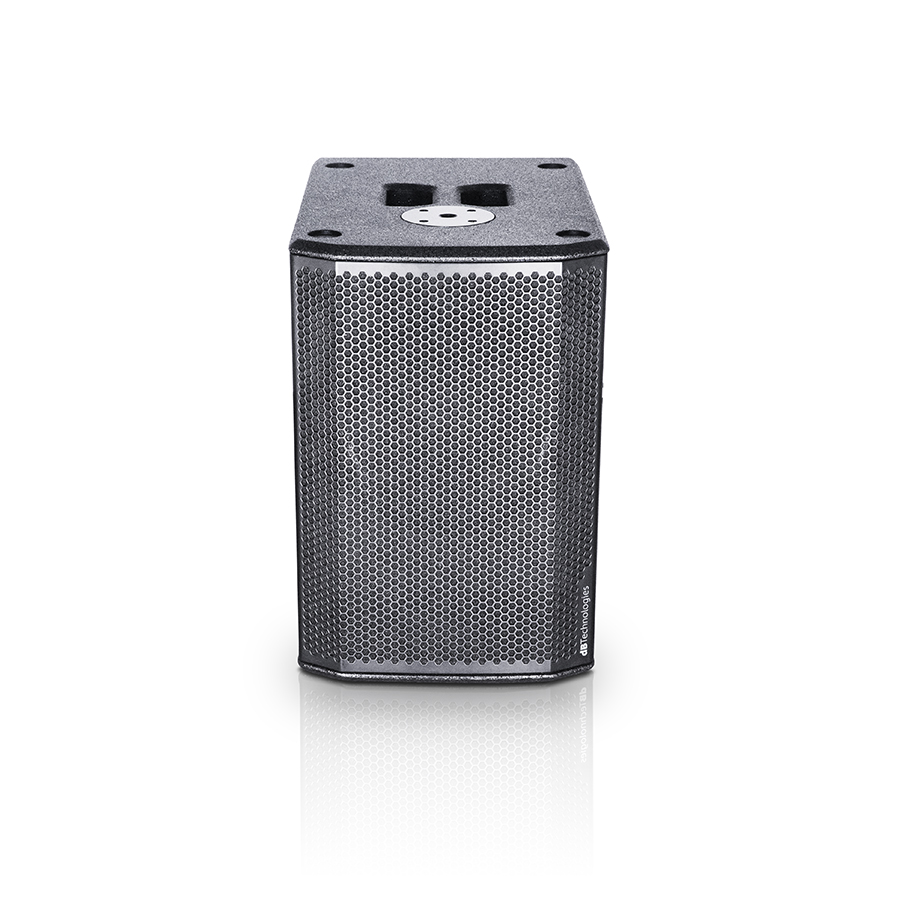

dBTechnologies subwoofer
dBTechnologies releases SUB612 to complete SUB 600 active subwoofer family. The new model aims to create complete PA system making the most of dBTechnologies’ smaller full-range systems such as OPERA 10 and B-H 8 and 10. FEATURES 600 W RMS CLASS-D AMPLIFIER STEREO BALANCED INPUT LINK OR X-OVER BALANCED STEREO OUTPUT MODE COMPACT AND STURDY WOOD CABINET LIGHTWEIGHT POLARITY INVERSION SWITCH FLAT OR BOOST EQ MODE SWITCH Technical Data Speaker Type: Active Subwoofer Acoustical data Frequency Response [-10dB]: 46 - 123 Hz Max SPL (1 m): 129 dB Directivity: omnidirectional LF: 12” LF Voice Coil: 2.5" Amplifier Amp Technology: SMSP digital amplifier Amp Class: Class D RMS Power: 600 W Peak Power: 1200 W Processor Controller: DSP 28/56 Bit Limiter: Peak, Thermal, RMS Controls: 1x Subwoofer attenuation Control 1x Flat/Boosted switch 1x Switch output mode 1x Polarity switch Input Signal Input: 2x XLR (balanced) Signal Output: 2x XLR (balanced) Mechanics Housing: Black painted Plywood Handles: 1 on top Pole Mount: M20 Width: 360 mm (14.72 in) Height: 550 mm (21.65 in) Depth: 525 mm (20.67 in) Weight:19.8 Kg (43.65 lbs)
- Mærke: dBTechnologies
- Kategori: AGENTUR > dBTechnologies > SUB Series
- GTIN: 8058159118871
