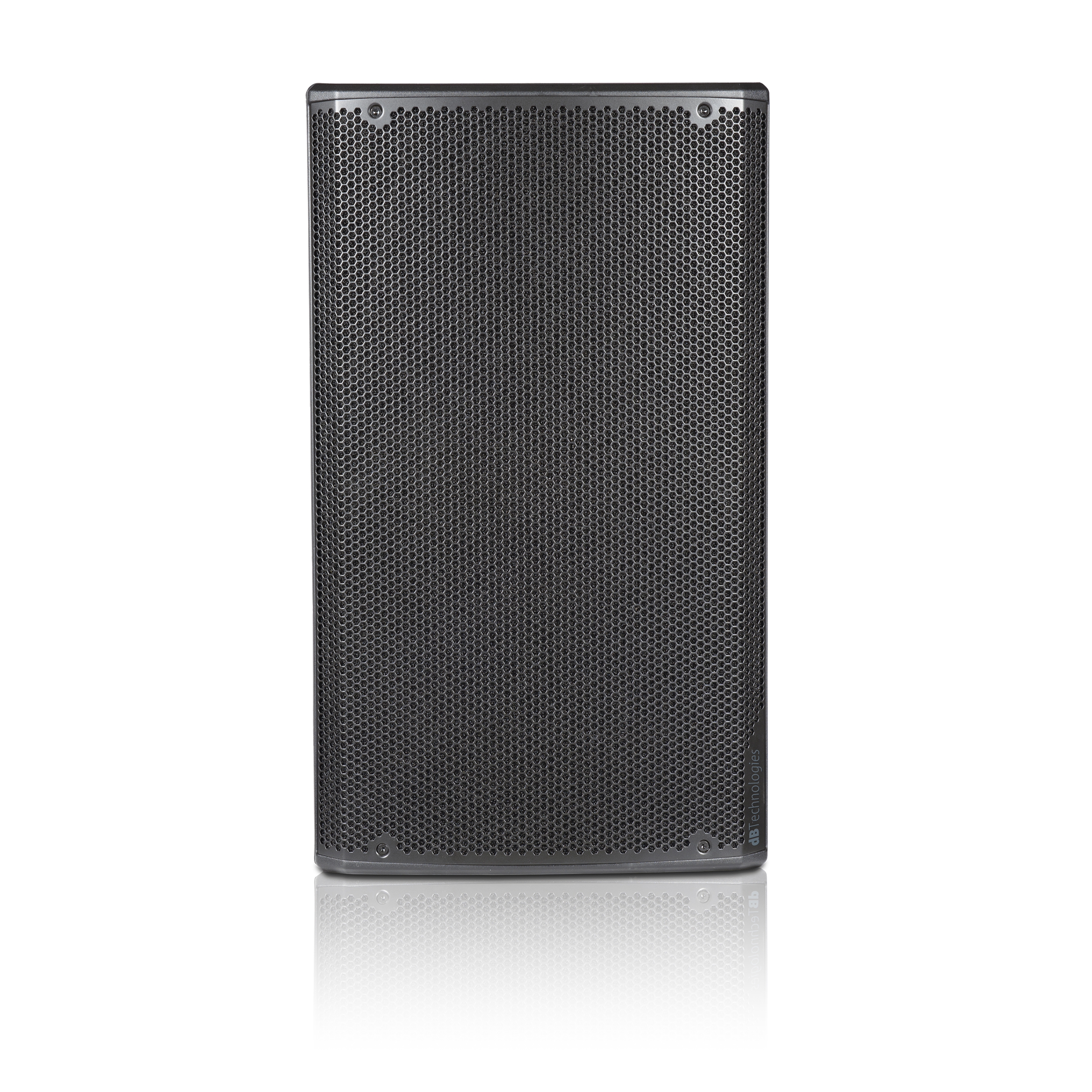

dBTechnologies aktiv højttaler
Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet accurate audio performance, successfully adaptable to both playback and live music applications. FEATURES 1200 W PEAK POWER 600 W RMS POWER NEWLY DESIGNED ASYMMETRICAL HORN ADVANCED DSP WITH FIR FILTERS 2 INPUT CHANNELS (MIC-LINE/MIC-INSTR) SELECTABLE OUTPUT CHANNEL (LINK CH1/MIX CH 1+2) 8 EQ PRESETS FRESH FULL GRILLE DESIGN STAGE MONITOR USE Technical Data Speaker Type: 2-Way Active Speaker Acoustical data Frequency Response [-10dB]: 50 - 20.000 Hz Frequency Response [- 3dB]: 56 - 19.000 Hz Max SPL: 130 dB HF: 1" Exit, 1.4 v.c. Type HF: MCompression driver Horizontal Directivity: 100° (85° up/120° down) Vertical Directivity: 85° (+ 25°/-60°) Horn: Asymmetrical Horn LF: 15", 2" v.c. Amplifier Amp Technology: Amp SMPS Power supply dual range Amp Class: Class D RMS Power: 600 W Peak Power: 1200 W Processor Controller: DSP 56 bit AD/DA Converter: 24 bit/48 KHz System Presets: Rotary Encoder (8 Presets) X-Over Frequency: 1800 Hz Limiter: Peak, RMS, Thermal Advanced DSP Functions: Linear Phase FIR Filters Input Signal Input: 1xCombo (XLR/Jack 6.3 mm) MIC/Line 1xCombo (XLR/Jack 6.3 mm) MIC/Inst Signal Output: 1x XLR Male (CH1 Link/Mix OUT) Selectable Mechanics Housing: Polypropylene with internal frame Grille: Full grille Handles: 1 on left Side, 1 on Top Rigging Points: 2XM10 on Top + 1x M10 on Back Pole Mount: D36 mm Angles up: Monitor use 45° Width: 420 mm (16.54 in) Height: 722 mm (28.43 in) Depth: 419 mm (16.50 in) Weight: 18.3 kg (40.34 lbs)
- Mærke: dBTechnologies
- Kategori: AGENTUR > dBTechnologies > OPERA
- GTIN: 8058159118970
