Genzler pedal

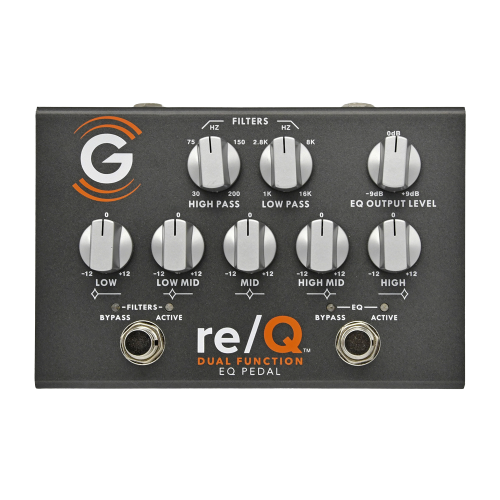

The re/Q™ DUAL FUNCTION EQ PEDAL is a low noise, ALL ANALOG multi-function HIGH PASS FILTER – LOW PASS FILTER and 5 BAND EQ pedal that gives the player complete tonal control over the cut-off of the extreme low and high frequencies, plus 5 bands of peak-dip equalization. The filter section is foot switched independently from the EQ section, and there is additional make-up gain or cut after the EQ for balancing of levels or to act as an additional boost/cut function when the EQ is switched into the signal path. The re/Q is also a great companion to our 4 ON THE FLOOR Classic Overdrive Pedal. It can be used to tailor your instrument’s tone for various overdrive settings, or increased boost levels for any of the Overdrive gears. Features: • Lightweight Aluminum Chassis • Rugged Stomp Switches • Low-noise, Silent Switching Circuitry • High-Pass and Low-Pass Filter • 5 Band Fixed EQ Network • EQ Output Level Control • Accepts Power Supplies From 9VDC – 18VDC (low noise type), Either Polarity (auto detecting) 40mA Max — (Power Supply Not Included) • Dimensions: 127mm (W) x 104mm (D) x 59mm (H) • Weight: 0.6kg Specifications: • Input Impedance: >1M ohm • Output Impedance: 1k ohm • HPF: 30Hz – 200hz • LPF: 1kHz – 14kHz • EQ Filter Points: • LOW: 90 Hz • LOW MID: 250Hz • MID: 630Hz • HIGH MID: 1.3kHz • HIGH: 2.6kHz • EQ Band Control Range: +/- 12dB • EQ Output Level Control Range: +/-9dB • Input Sensitivity (nominal): -10dBu to -20dBu (instrument level) • Input Level (maximum): 0dBu (9V supply), +5dBu (12V supply), +10dBu (18V supply) • Output Level (nominal): -10dBu to -20dBu (instrument level) • Output Level (maximum): +9dBu (9V supply) +14dBu (12V supply), +20dBu (18V supply)

• Mærke: Genzler
• Kategori: AGENTUR > Genzler > Pedaler
• GTIN: 853974006383
