Australian Monitor mixer

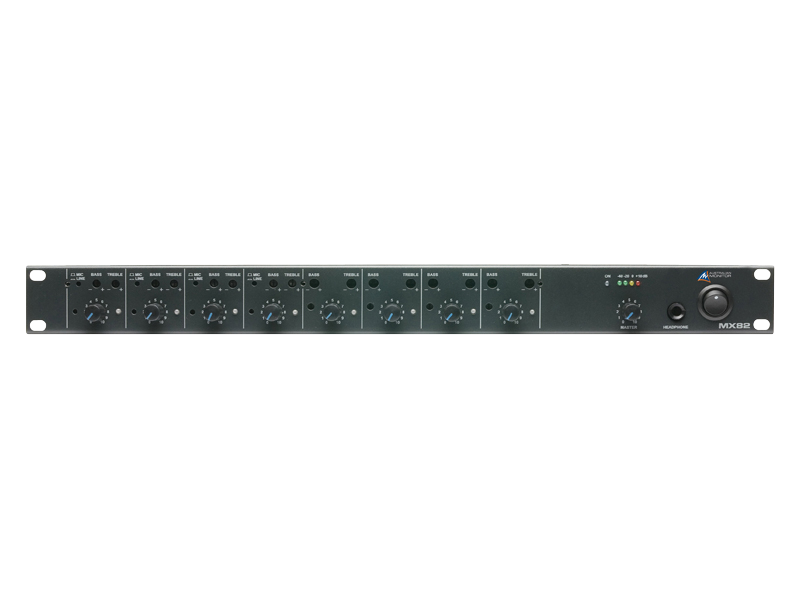

The MX82 offers high quality audio performance and a wide array of features in standard 1RU size. There ar four mic/line inputs and four stereo inputs.Each of the four mic/line channels consists of a balanced XLR input switchable between mic and line level, 15dB af gain trim across the mic/line inputs plus individually switchable phantom power (15VDC). The first 4 channels also feature a line level direct output which can be used to feed additional amplifiers, mixers or recording devices. An internal dip switch allows the first 4 inputs to be routed to the direct output, the master outputs or both. You can also feed the optional tone generator to the direct outs if required. Input 1 can also be pre or post master if you require, allowing it to be used as a priority (or emergency) input. Inputs 5-8 are four dedicated stereo RCA aux/line level inputs. Features 4 XLR inputs switchable between microphone and line level, each with direct output 4 stereo dual RCA line level inputs. Each input has front panel microphone/line switching (inputs 1-4), treble and bass control, +/- 15dB of gain trim and dual colour status LED indication Single master volume control Phantom power individually switchable for XLR inputs Priority muting via optional muting modules Optional remote VCA master and tone board

• Mærke: Australian Monitor
• Kategori: AGENTUR > Australian Monitor > Mixer
• GTIN: 9323383011106
